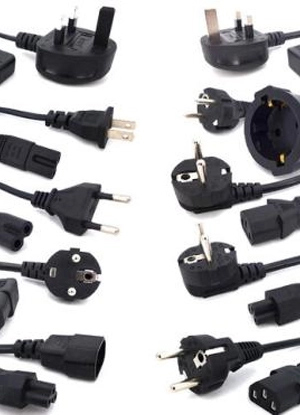

WEIDAN provides a full range of power connection cables, power strips, power socket panels, power cable trays, and power pull drums from most countries, and has corresponding safety certifications such as VDE, UL, ETL, KEMA, CEBEC, N, FI, SI, SEV, OVE, SAA, PSE, SABS, BS, ASTA, IRAM, BI, BSI, SASO, UC and CCC. CE, ENEC, etc.
In the data center room, servers are a large group of computers that manage network resources and require power supply to function properly. Therefore, server power cables are the basic accessories that connect power distribution units (PDU) to servers. Although the types and standards of power cords vary in different countries, IEC 60320 is still recognized as the international standard used by most countries in the world. IEC 60320 specifies that the maximum voltage for power cord appliances is 250V, where the identification letter "C" represents the code standard for connectors manufactured by IEC 60320. Different types of connectors have been specified for different combinations of current, voltage, and temperature.

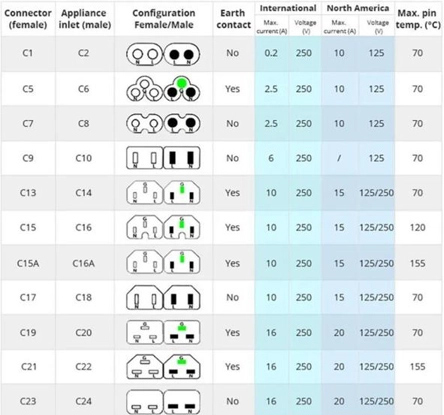

Among the above power cord types, C13, C14, C15, C19, and C20 are commonly used in data centers. Among them, The plugs of IEC 60320 power lines are even numbered, and the matching sockets are odd numbered, so C13 C15 and C19 power lines refer to the connector (female) type of IEC 60320 power lines, C14 and C20 power lines refer to the plug connector (male) type of IEC 60320 power lines.

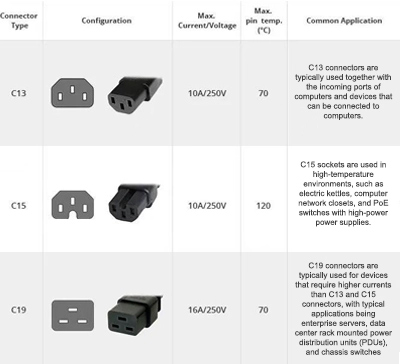

From the above figure, it can be seen that the difference between the C13 power cord、C15 power cord and C19 power cord is that their appearance, current, and operating temperature are different, which leads to differences in the application range of the C13 power cord, C15 power cord and C19 power cord is different. C13 power cord is the most common power cord in our daily life, usually used to connect computer equipment. The rated power of the C13 power cord is the same as that of the C15 power cord, but the highest temperature of the C15 power cord is higher than that of the C13 power cord, indicating that the C15 power cord is more suitable for current transmission in high-temperature environments, such as electric kettles, kitchen utensils, and other appliances. The C19 power cord has a high current and can provide a greater current of 16A for connecting devices, making it suitable for connecting high-power devices such as enterprise level servers and so on.

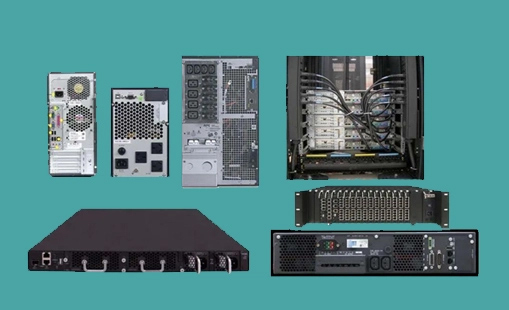

The difference between C14 power cord and C20 power cord lies in their appearance and current, which leads to different application ranges. C20 power cord has a higher current compared to C14 power cord, which can output higher power and is more suitable for application in large servers, workstations, PDU and other fields, while C14 power cables are generally used to connect computers and other devices.

Overall, IEC 60320 power cord provides users with great flexibility in detachable power systems, and provides strong guarantees for the compatibility and safety of electrical equipment, with high efficiency. When selecting and using IEC 60320 power cords, it is necessary to confirm that the specifications and performance of the power cords meet the application requirements. Different application scenarios require different specifications of power cords, such as current capacity, voltage level, length, etc.

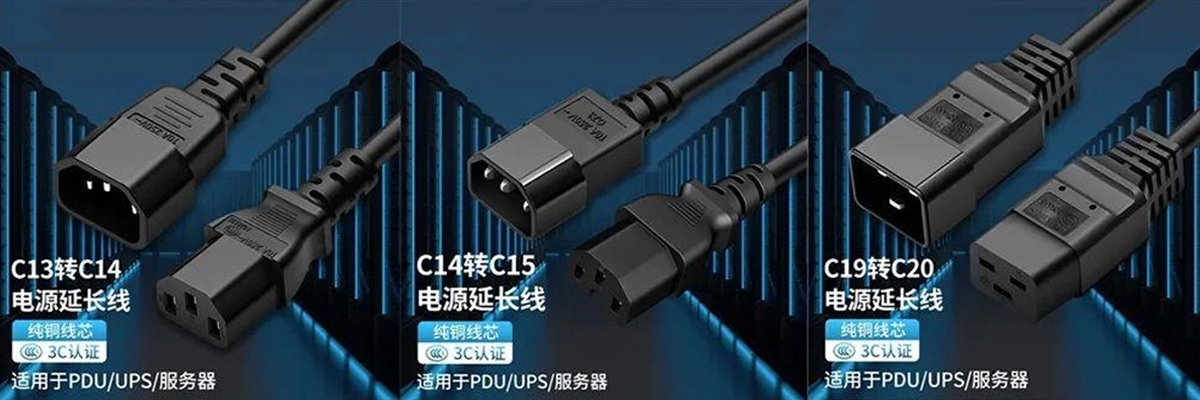

Although the structure of IEC 60320 power cords is not complex, their quality cannot be seen from the surface. Products must comply with the strictest safety requirements to ensure user safety and meet the growing demand for user-friendly products. WEIDAN industrial grade high reliability IEC 60320 power extension cable series with complete variety, customizable according to needs, available in multiple products with C13 to C14, C14 to, C19 to C20 standards, bold pure copper wire cores, PVC environmentally friendly flame-retardant outer sheath, with added fireproof coating on the inner wall, excellent workmanship, in compliance with national 3C and IEC standards, ensuring that users do not overheat and can prevent fire during use, truly safe and reliable.
