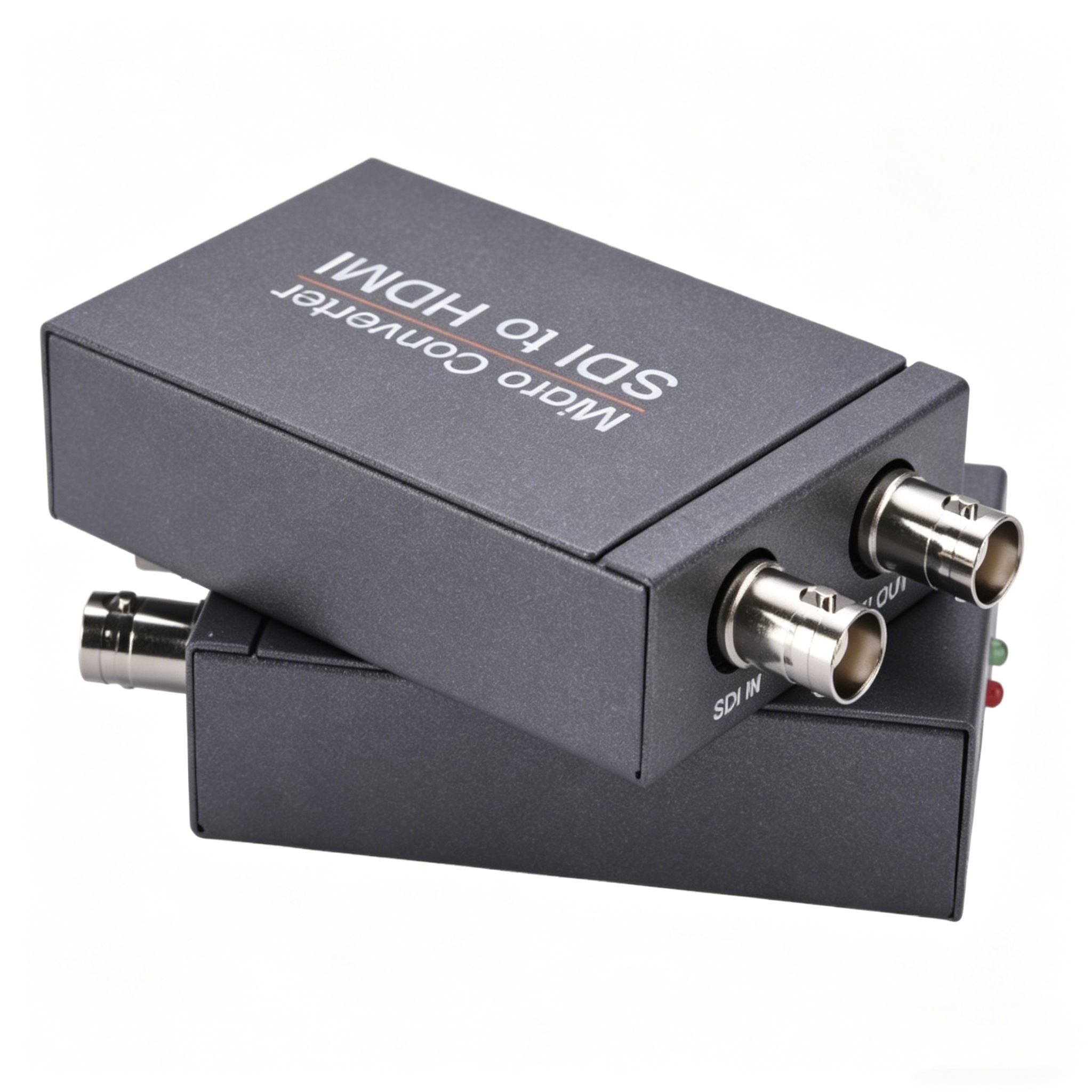

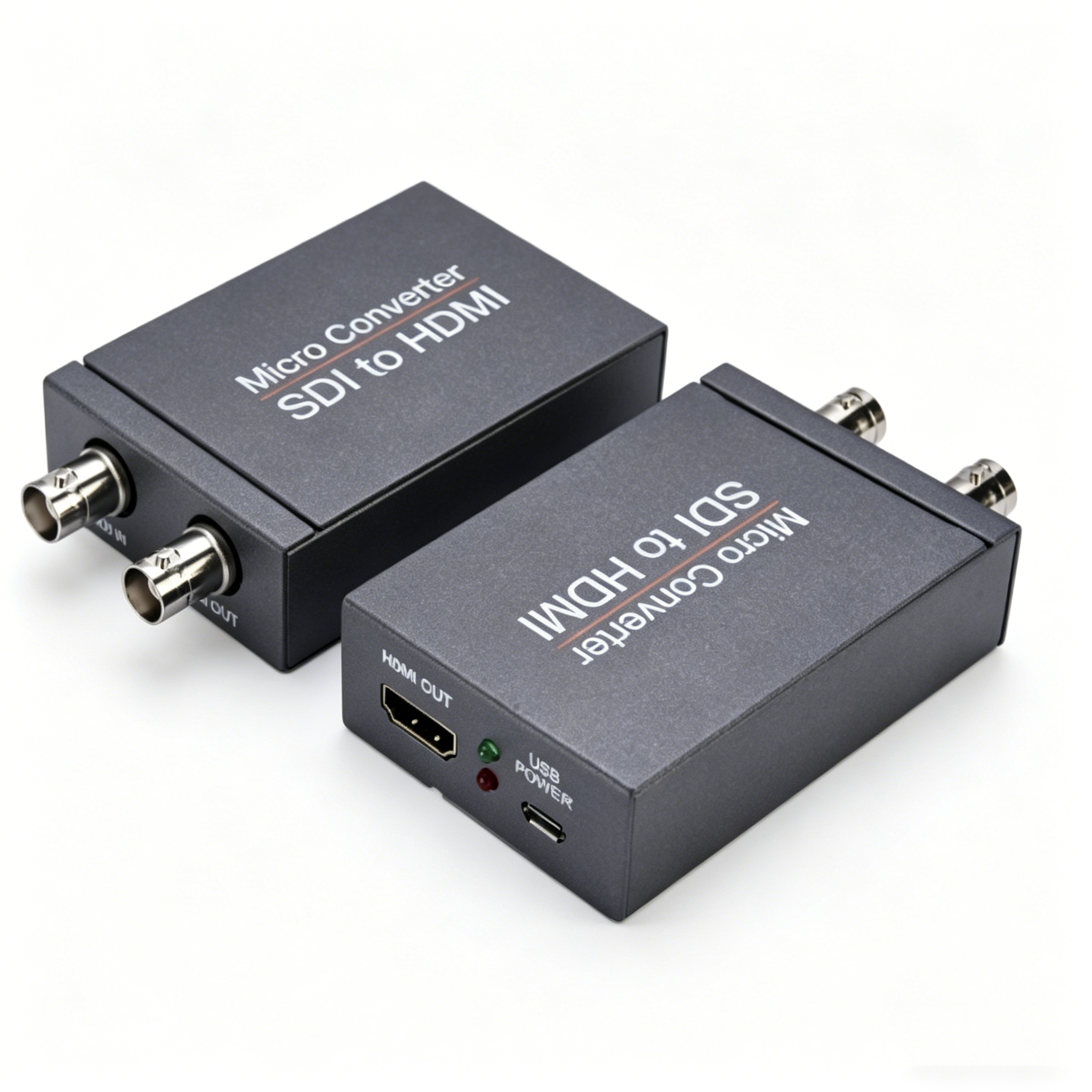

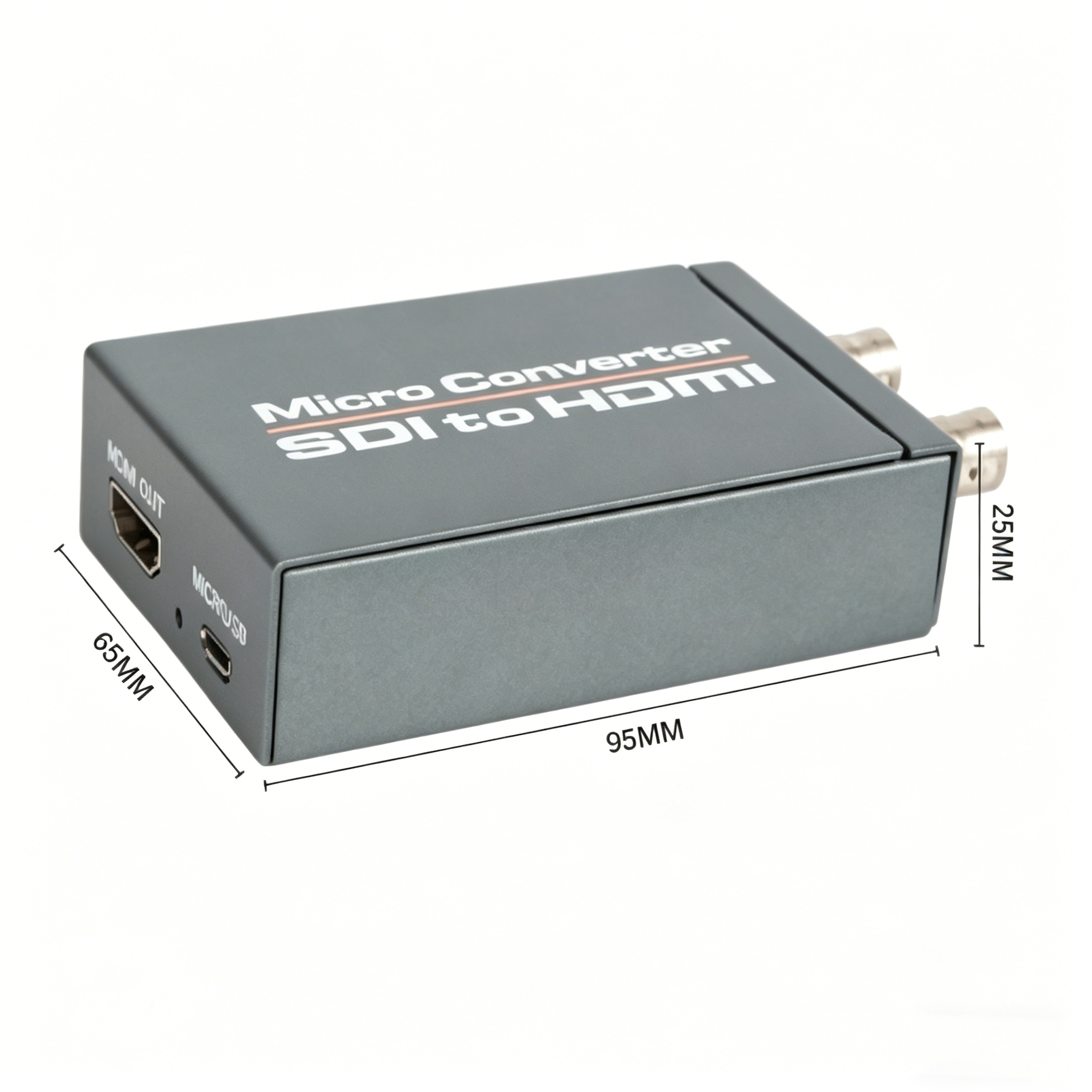

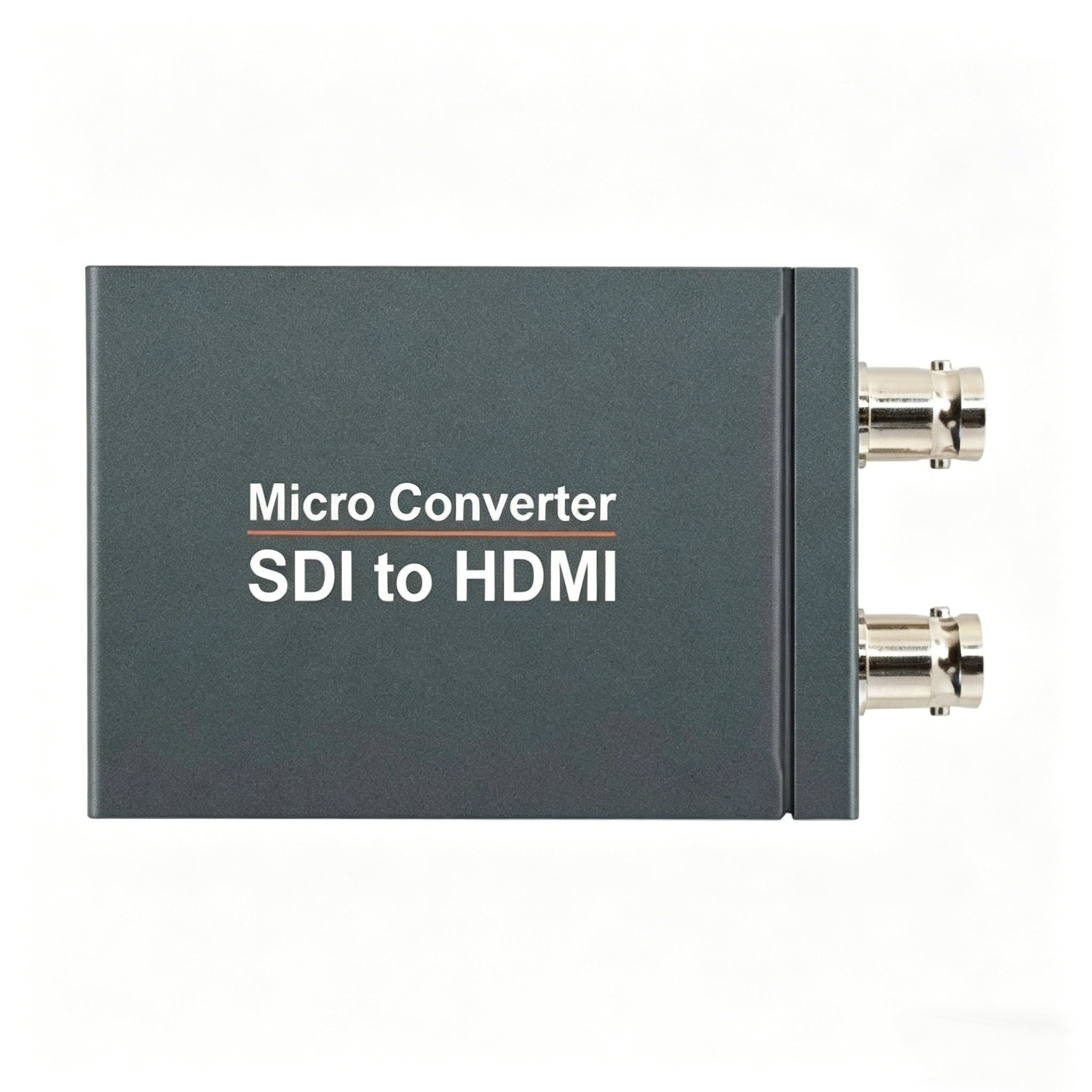

SDI To HDMI Adapter 1080P 3G SDI To HDMI with Loop Output

The 3G-SDI to HDMI Converter converts professional SDI video signals (3G-SDI, HD-SDI, SD-SDI) to HDMI for display on standard HDMI monitors, TVs, or projectors. Perfect for broadcast studios, live production, video editing, medical imaging, and security monitoring.
Availability:
Quantity:
Inquire Add to Basket

  • WDH5

  • Ningbo Weidan Electronics Co., Ltd.

Key Specifications:

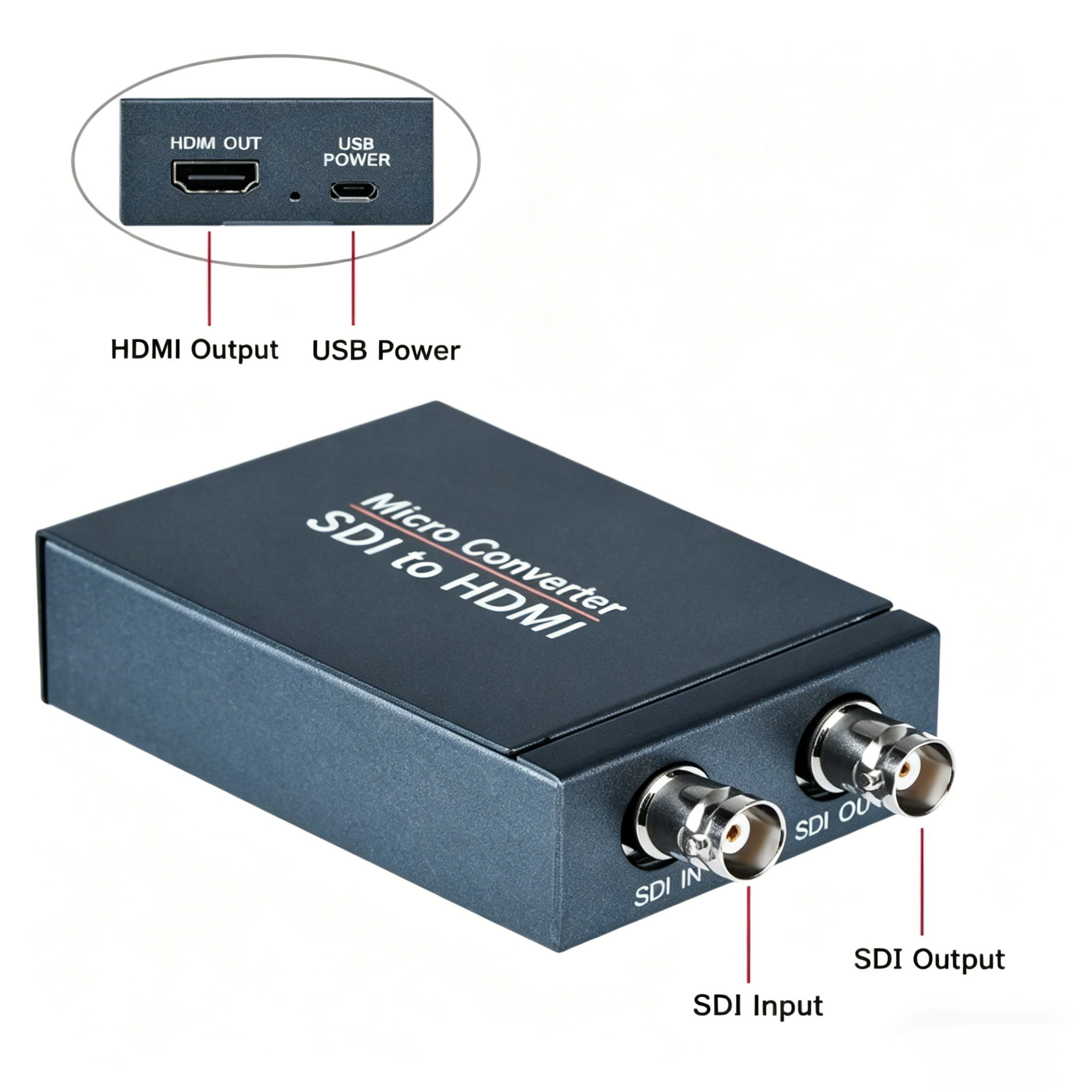

  • Input: SDI (3G-SDI, HD-SDI, SD-SDI)

  • Output: HDMI (1080P@60Hz) + SDI Loop Out

  • Supported Resolutions: 480i, 576i, 720P@25/30/50/60Hz, 1080i@50/60Hz, 1080P@25/30/50/60Hz

  • SDI Standards: 3G-SDI (2.97Gbps), HD-SDI (1.485Gbps), SD-SDI (270Mbps)

  • Audio: SDI embedded audio, synchronized HDMI output

  • Resolution Detection: Auto

  • Operating Temperature: -45°C to +85°C (-49°F to +185°F)

  • Power Supply: DC 5V/1A (adapter included)

  • Plug and Play: Yes, no driver needed
