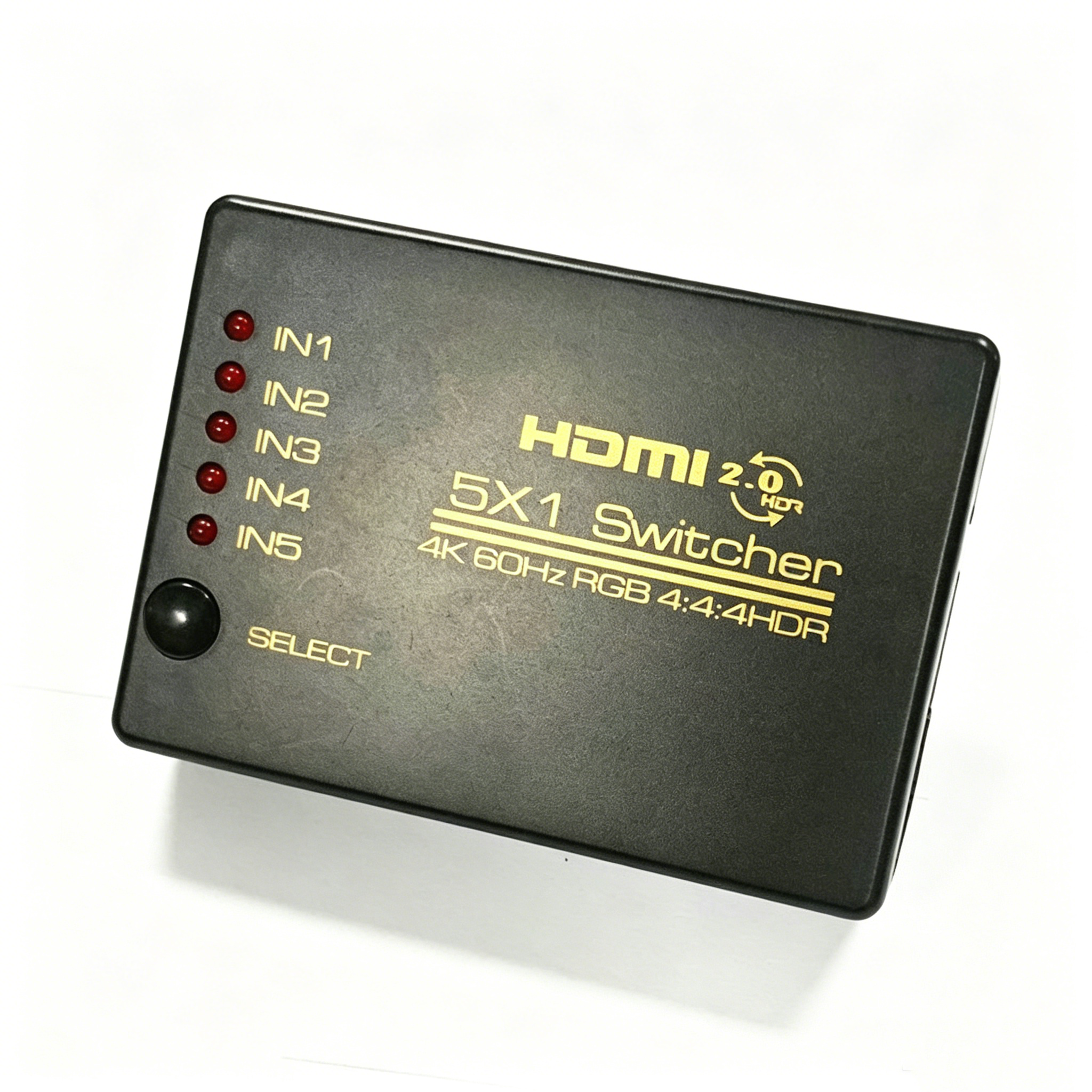

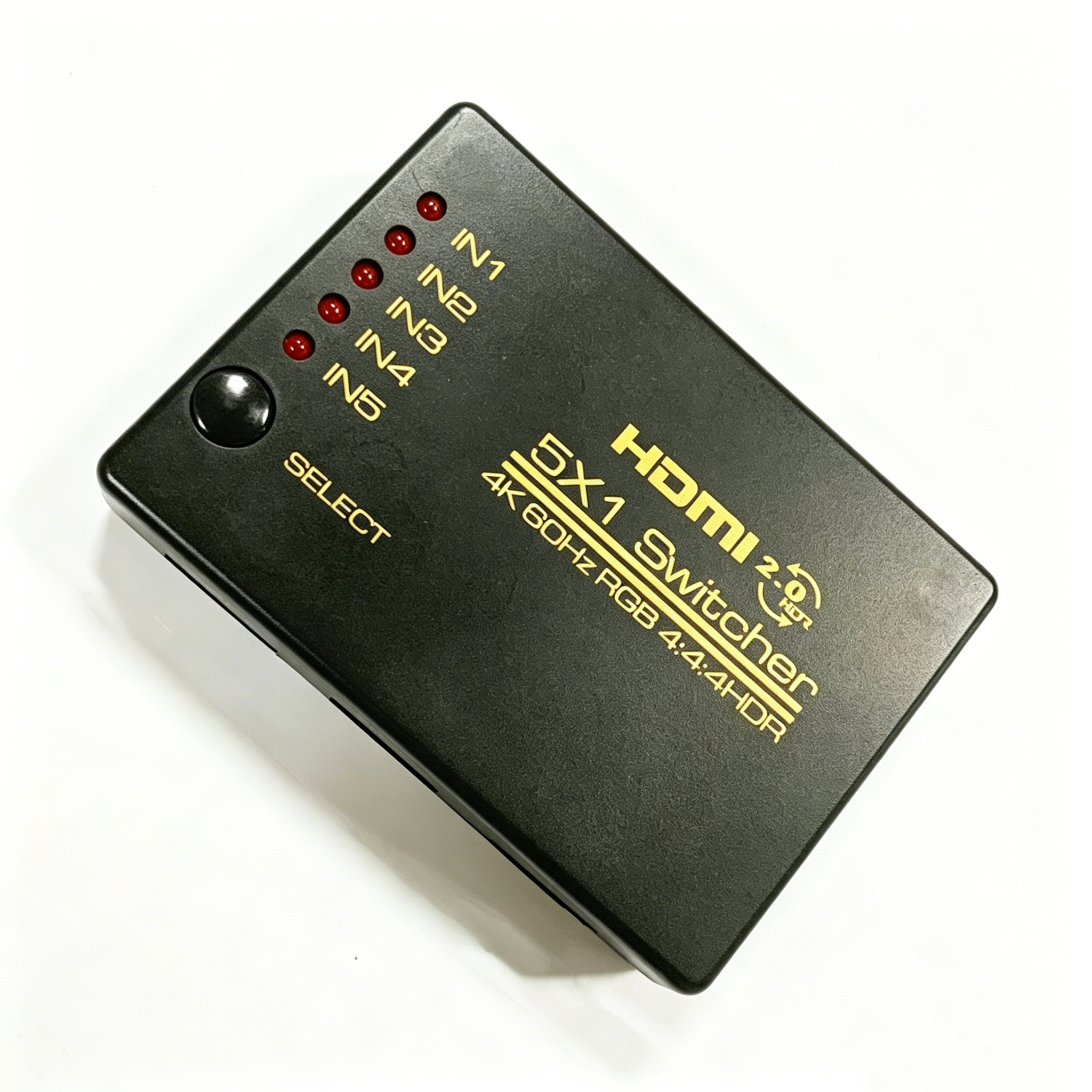

WDQ3
Ningbo Weidan Electronics Co., Ltd.
Key Specifications:
Bandwidth: 2.97Gbps

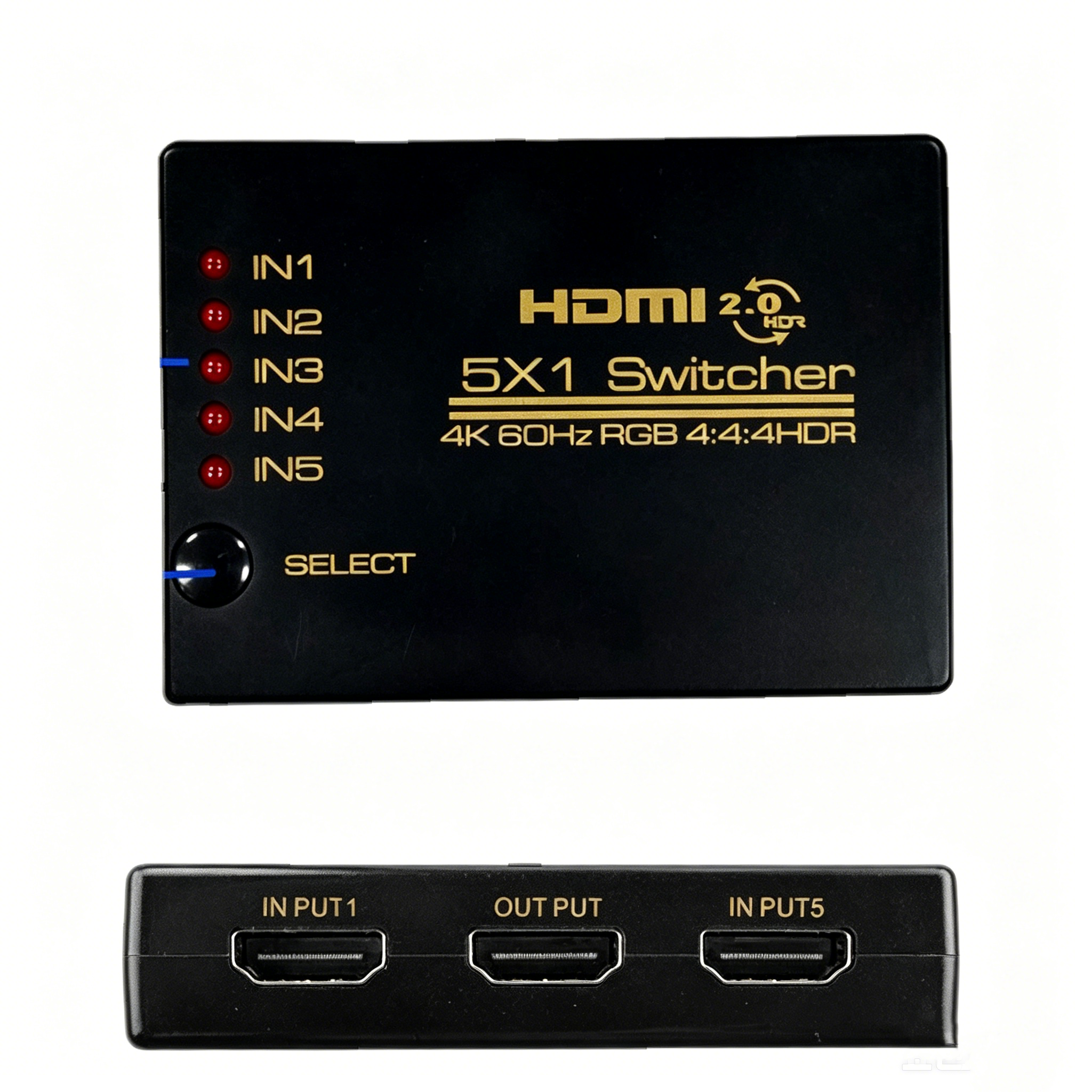

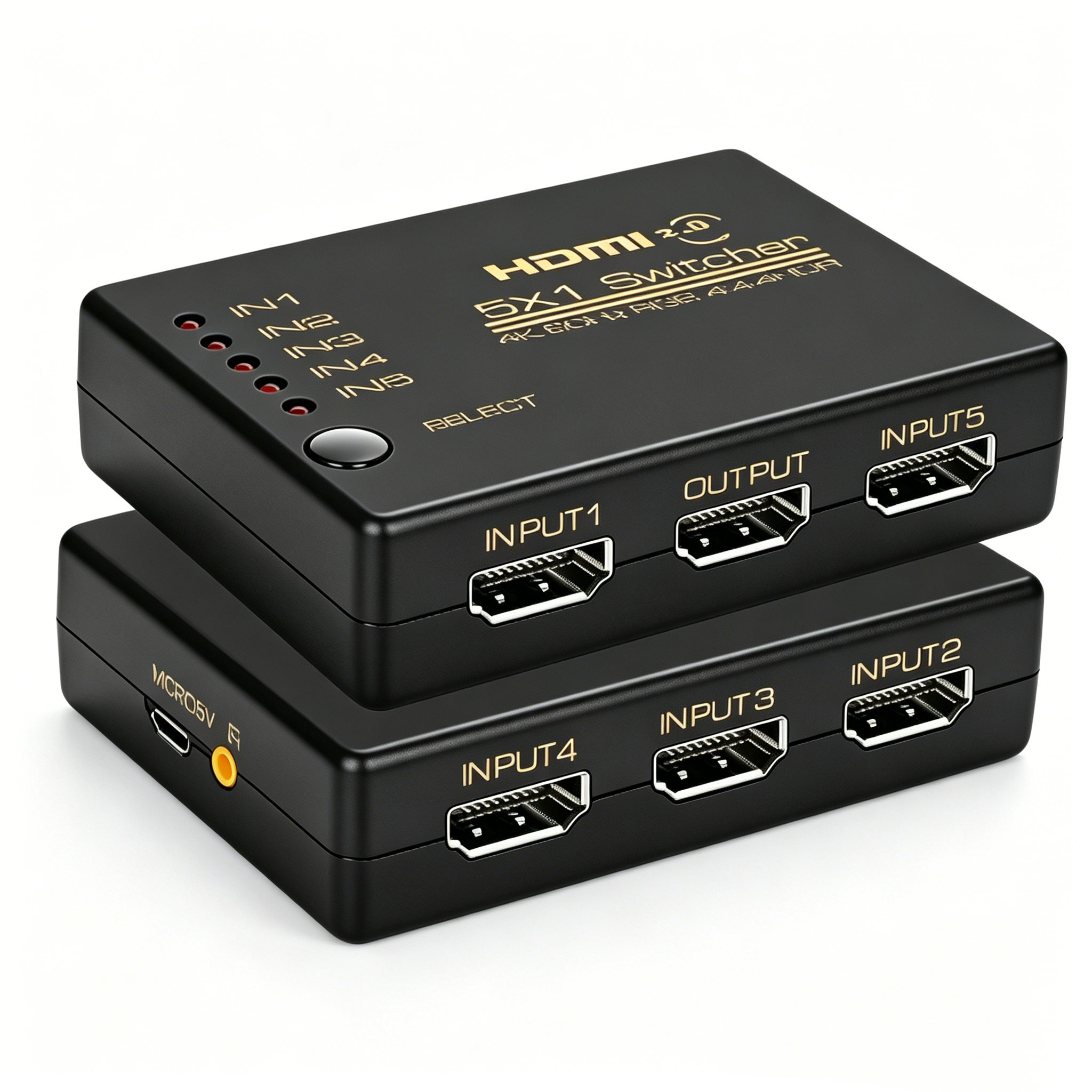

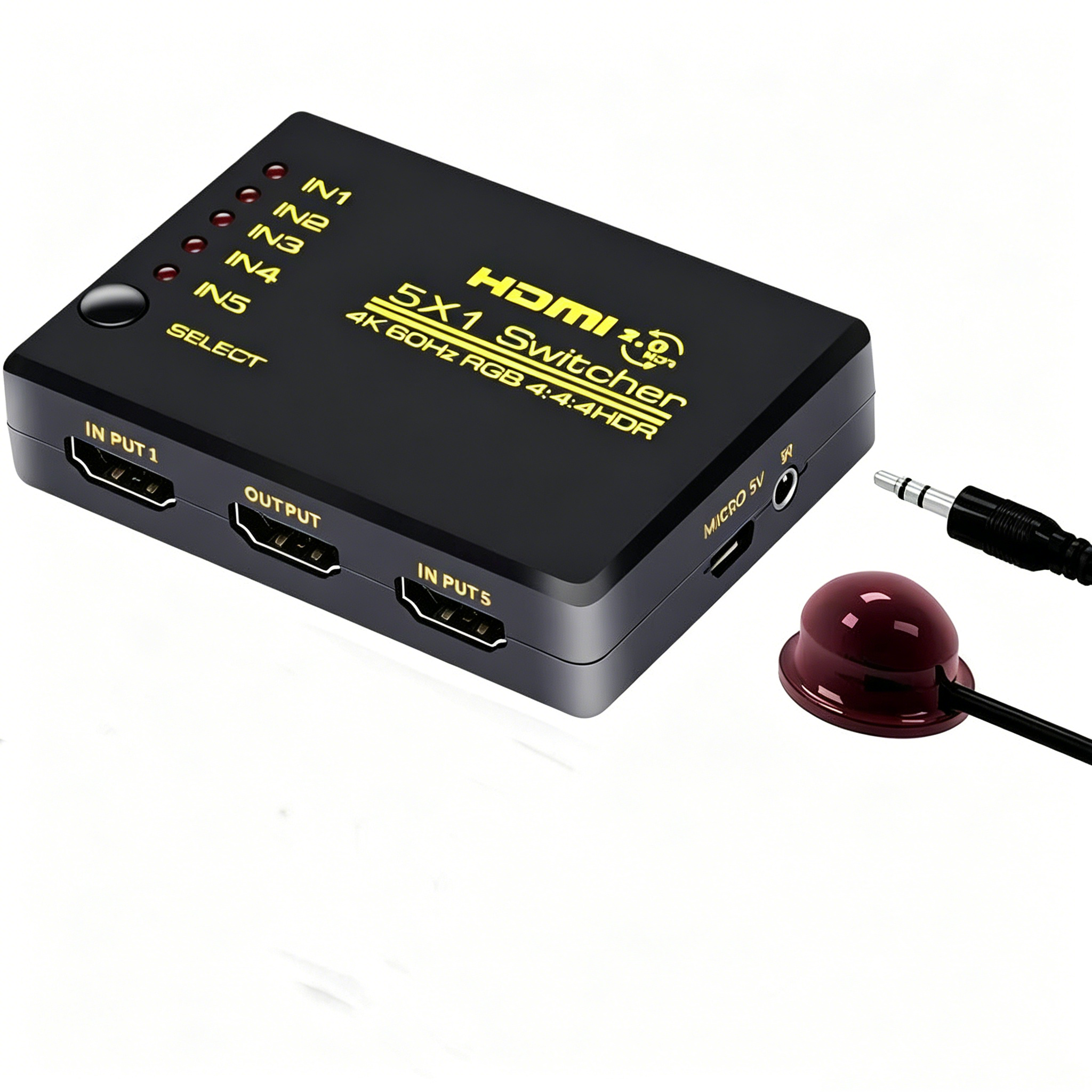

Input ports: 5x HDMI female ports, IR receiver port
Output port: 1x HDMI female port
HDMI audio output: PCM 2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD, DTS-HD
ESD protection (human body mode): ±8kV (air gap discharge), ±4kV (contact discharge)
Dimensions: 87(D) x 59.5(W) x 19(H) mm
Weight: 60g
Power consumption: 0.2W
Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
Compatible with standard HDMI 2.0b, HDMI 1.4a, CTS 1.4a, and DVI 1.0 versions
Supports HDMI 1.4: 3D TV and HDCP repeater
Supports 3D video formats, 4K x 2K resolution, and 8/10/12/16-bit deep color
Supports audio output: Dolby TrueHD, DTS-HD Master Audio 7.1CH
Low power consumption, no external power supply required
