24 Port Cat6 UTP Patch Panel 1U 19 Inch Rack Mount With Cable Management Bar

WEIDAN 24 Port Cat6 UTP Network Patch Panel

This Cat6 24 Port Patch Panel is designed for standard 19-inch network racks with 1U height, ideal for structured cabling systems in offices, server rooms and data centers. It realizes centralized management of network cables and simplifies network maintenance and line adjustment.

Main Features

• 24 RJ45 Cat6 ports, support Gigabit Ethernet, 250MHz bandwidth
• 1U height, compatible with all standard 19-inch network cabinets

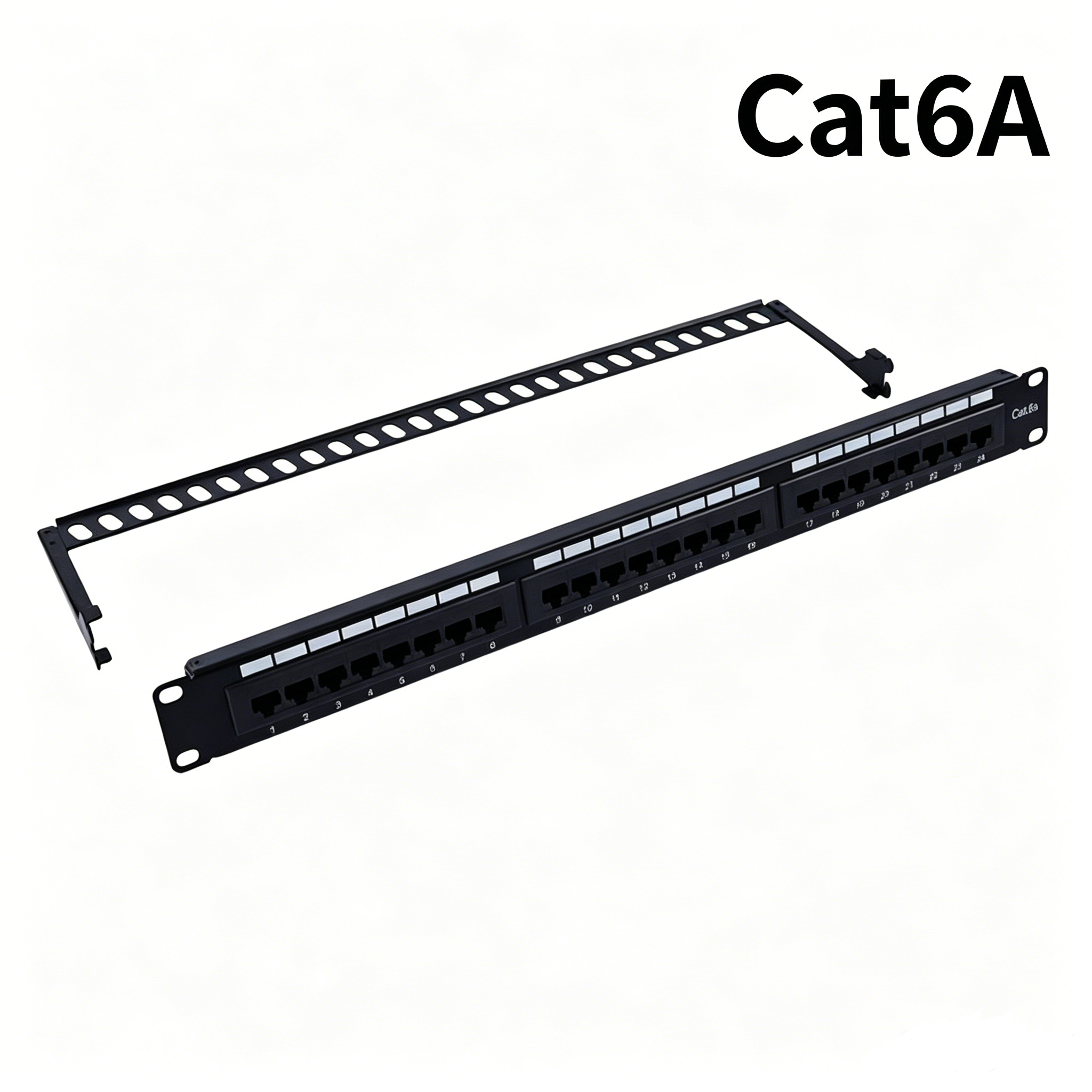

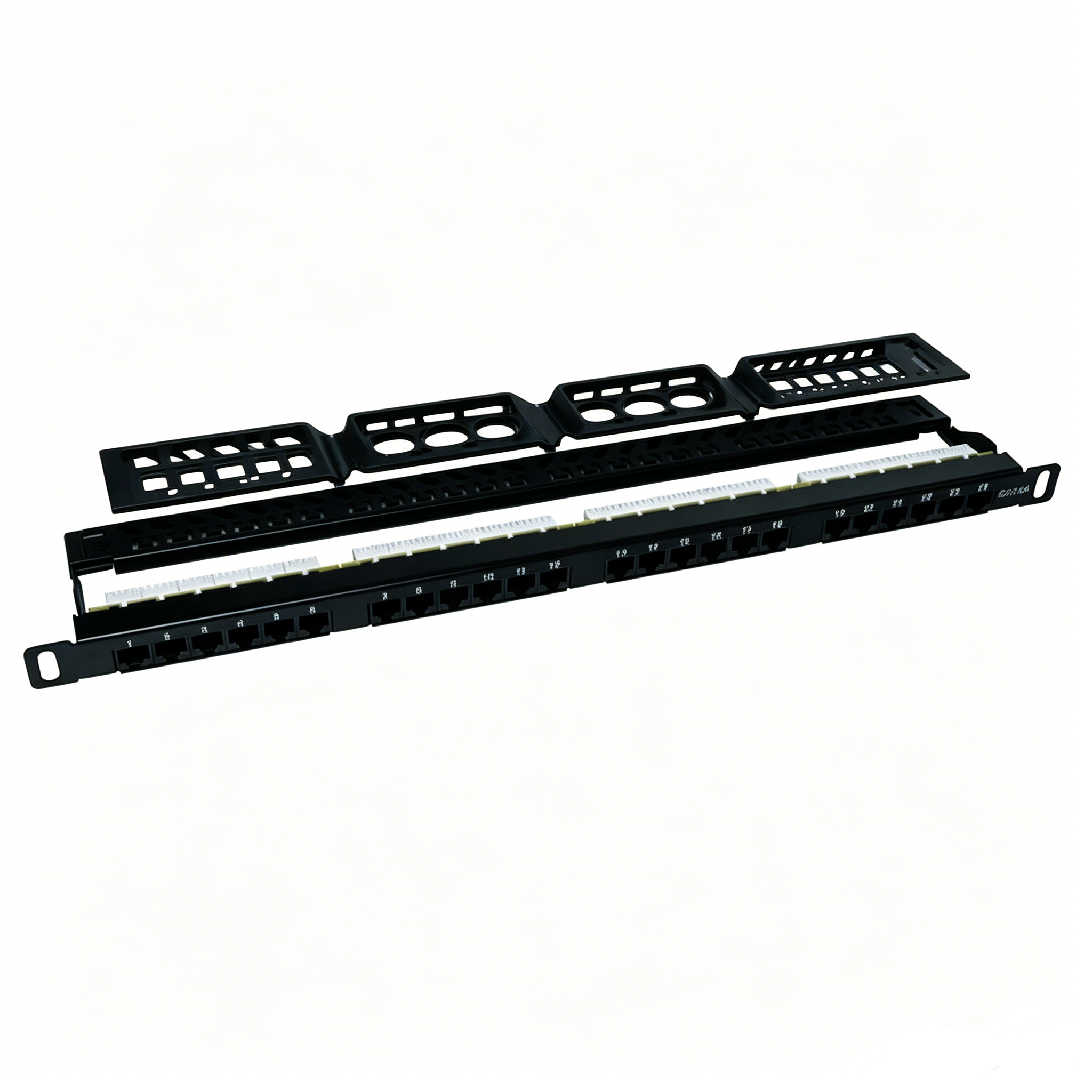

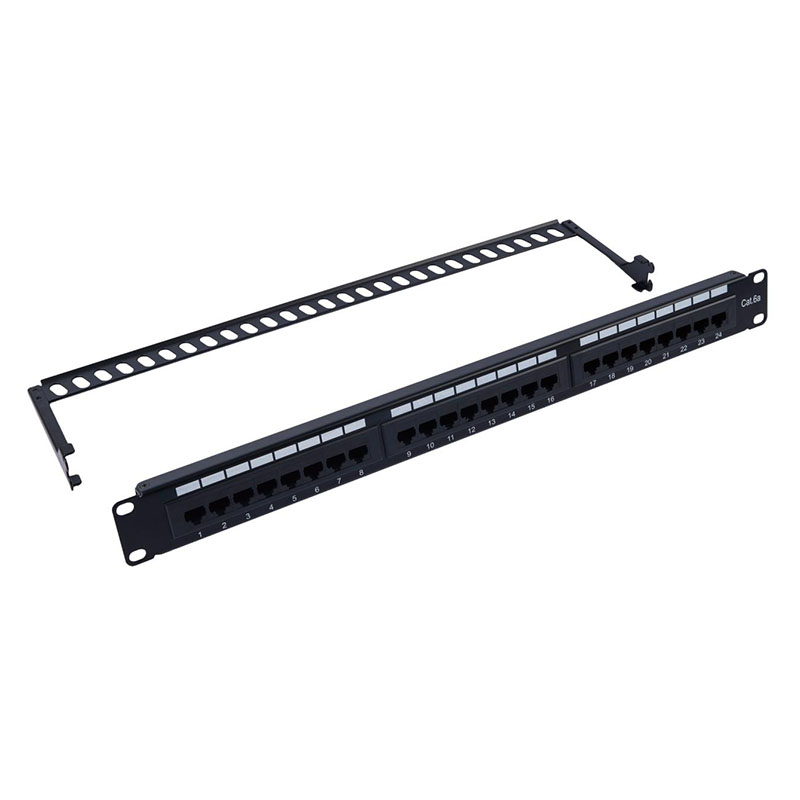

• Equipped with detachable cable management bar for neat cable routing
• Supports T568A and T568B two wiring standards
• Housing made of high-quality cold rolled steel with anti-rust coating
• 24K gold-plated contact pins, anti-oxidation, stable signal transmission
• Clear serial number labels on each port for easy identification

Specifications

Standard: Cat.6 UTP
Port: 24 Ports RJ45 Rack
Unit: 1U, 19 Inch
Bandwidth: 250MHz
Wiring Standard: T568A / T568B
Material: Cold Rolled Steel + Engineering Plastic
Application: Office LAN, monitoring network, data center, commercial building wiring

Package List

1 x 24 Port Cat6 Patch Panel
1 x Cable Management Bar
Mounting Screws
