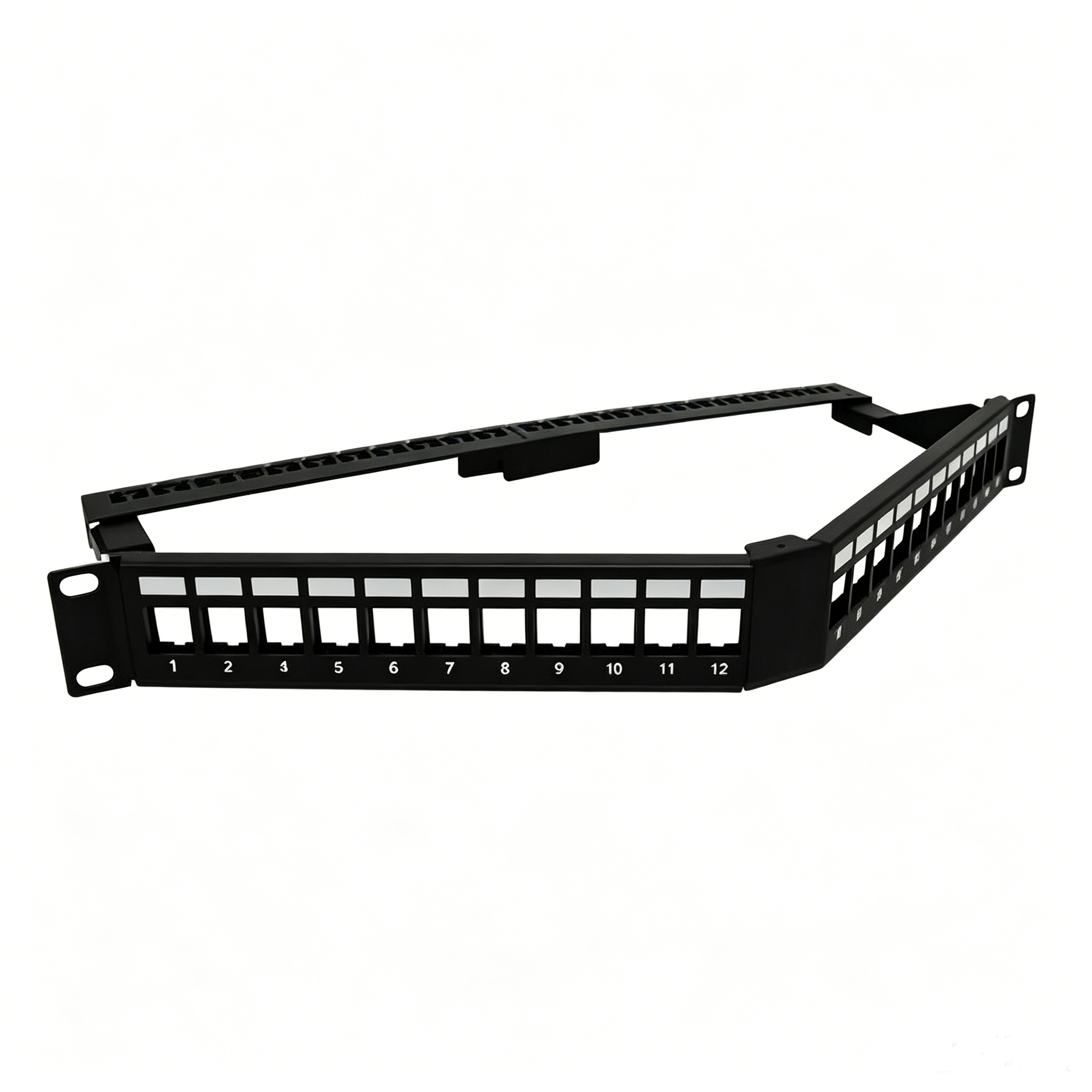

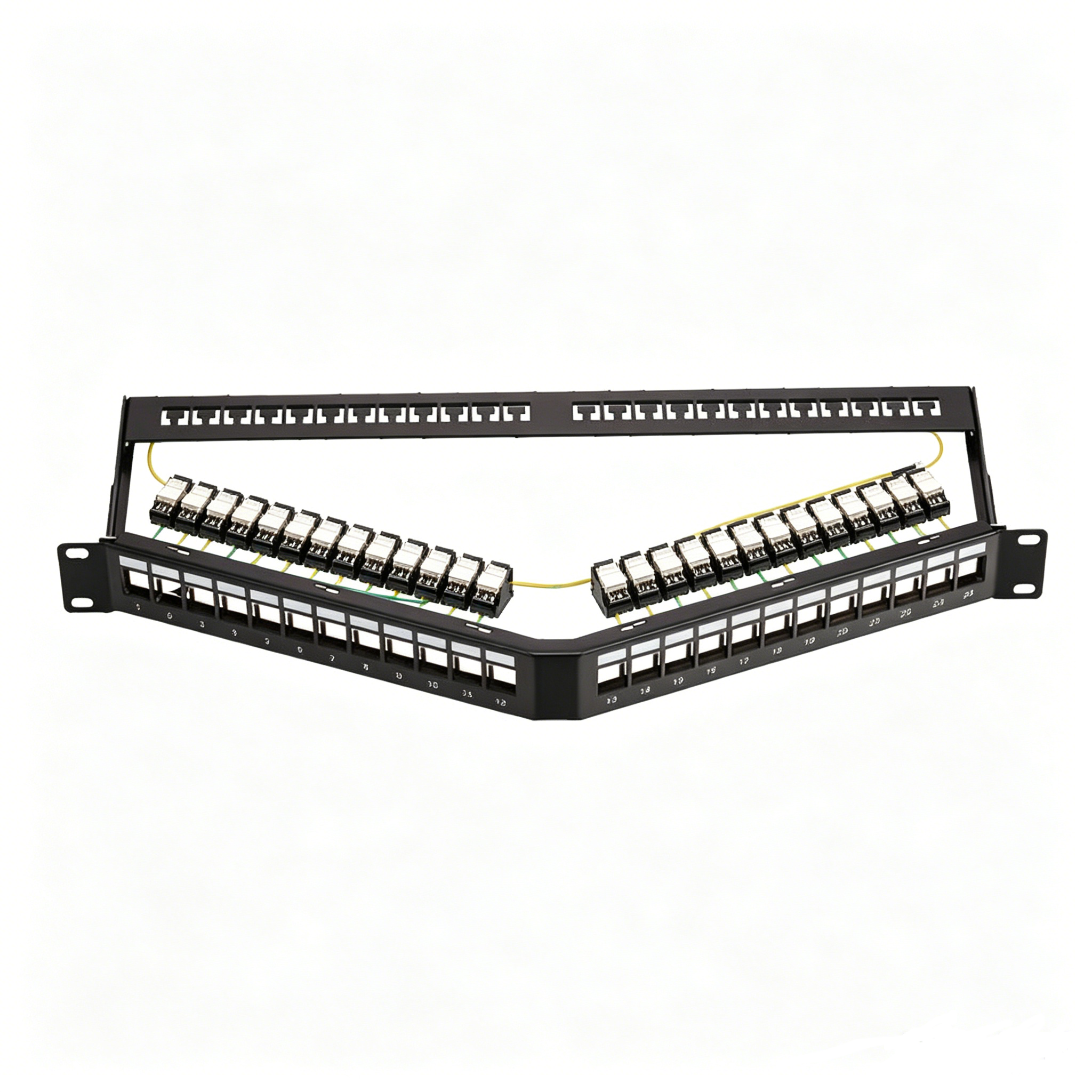

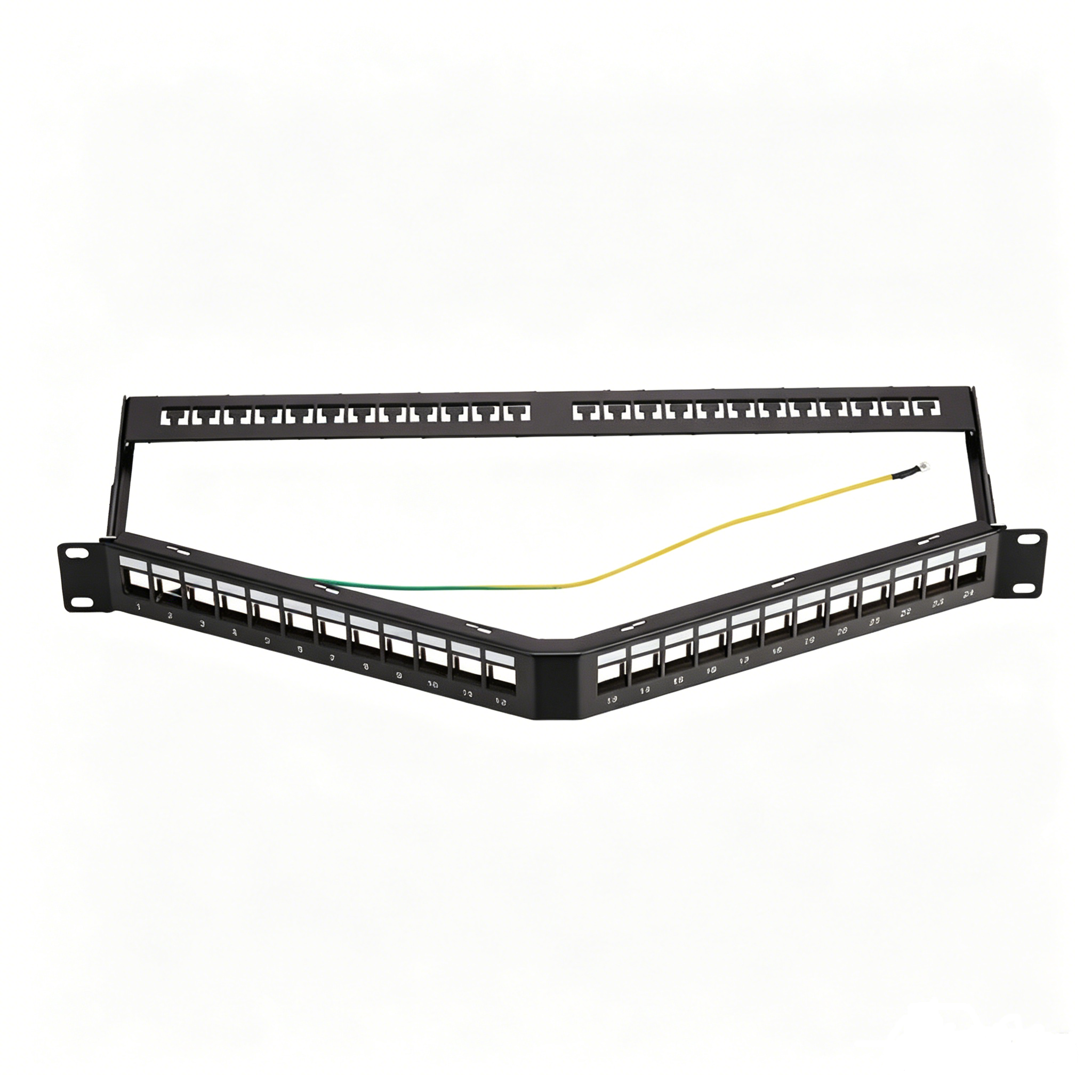

128° Angled Blank Patch Panel 1U 19 Inch 12/24 Port Empty Keystone Network Patch Panel with Ground Wire

1. Product Overview

128° angled blank unloaded patch panel is a cost-effective structured cabling solution for data center, office LAN, monitoring system. Standard 1U 19-inch rack mount fits all standard network cabinets. Empty keystone slot design lets you freely match Cat5e, Cat6, Cat6A shielded/unshielded RJ45 modules. The special tilted outlet avoids sharp cable bending, greatly reducing transmission loss for gigabit & 10G network.

2. Core Advantages

• 128° Angled Cable Exit

  Compared with straight patch panel, diagonal routing maintains natural cable curvature, protects wire core, stable high-speed network signal.

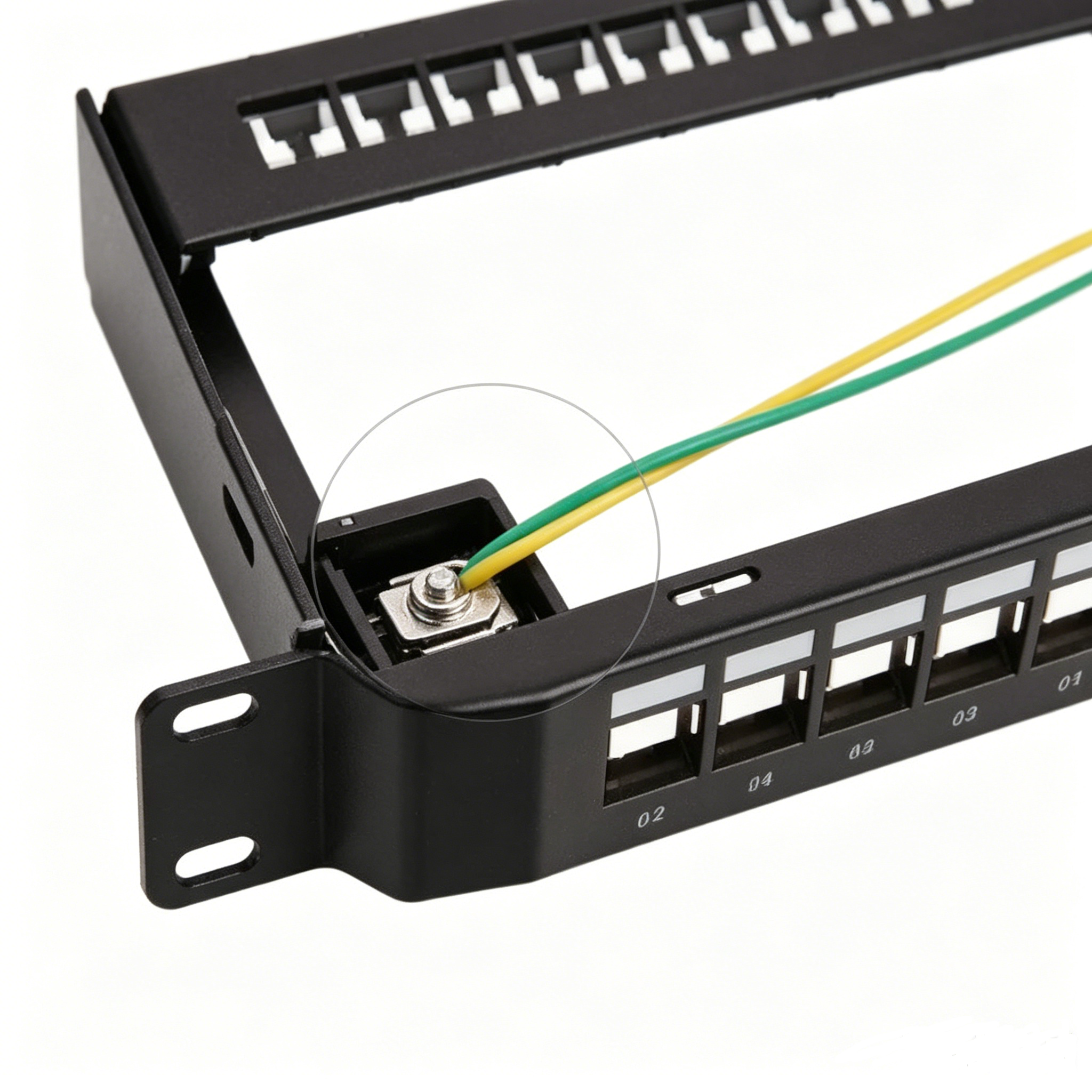

• Complete Grounding System

  Comes with yellow-green grounding wire, connect cabinet ground bar to shield electromagnetic interference, perfect for shielded network wiring.

• Heavy Duty Metal Housing

  Cold rolled steel frame with anti-rust black powder coating, scratch-resistant, durable for long-term cabinet use.

• Integrated Cable Management Bar

  Rear cable organizer tray bundles patch cords, keep cabinet wiring tidy, easy maintenance and troubleshooting.

• Flexible Compatibility

  Blank keystone slots support all standard RJ45 keystone jacks, you can mix different category modules as project demand.

3. Technical Parameters

• Rack Standard: 19 inch industry standard rack

• Unit Height: 1U (44.45mm)

• Available Port: 12 Port / 24 Port

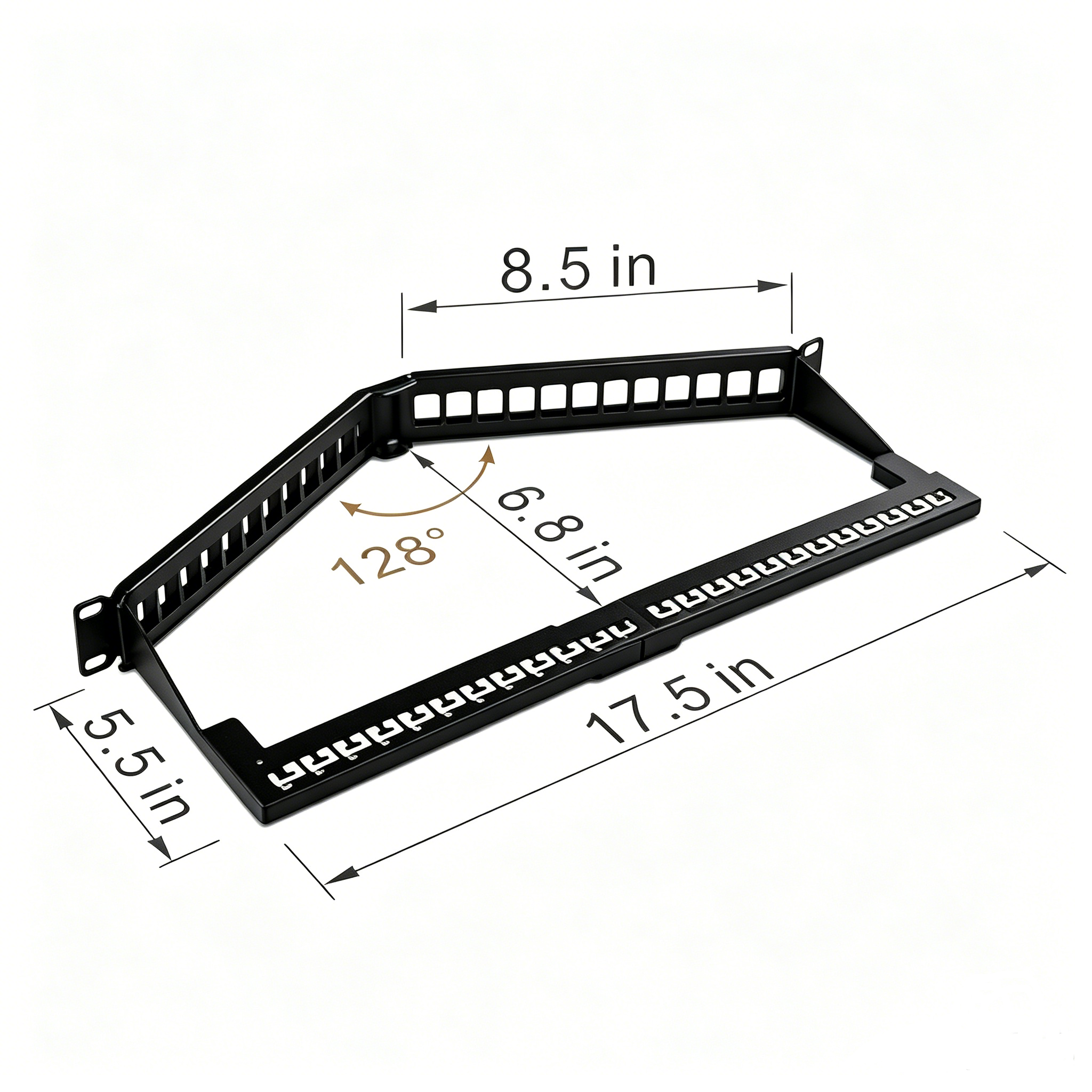

• Outlet Angle: 128 degree angled

• Material: SPCC cold rolled steel

• Surface Finish: Matte black powder coating

• Ground Accessory: 20cm grounding wire included

• Application: Commercial office, server room, IDC data room, campus network, security monitoring system

4. Package & Application Scenarios

Packaging: Independent carton packaging, foam protection to prevent deformation during transport. Widely applied in enterprise office network, computer lab, factory workshop monitoring wiring, small and medium data center integrated wiring projects.
