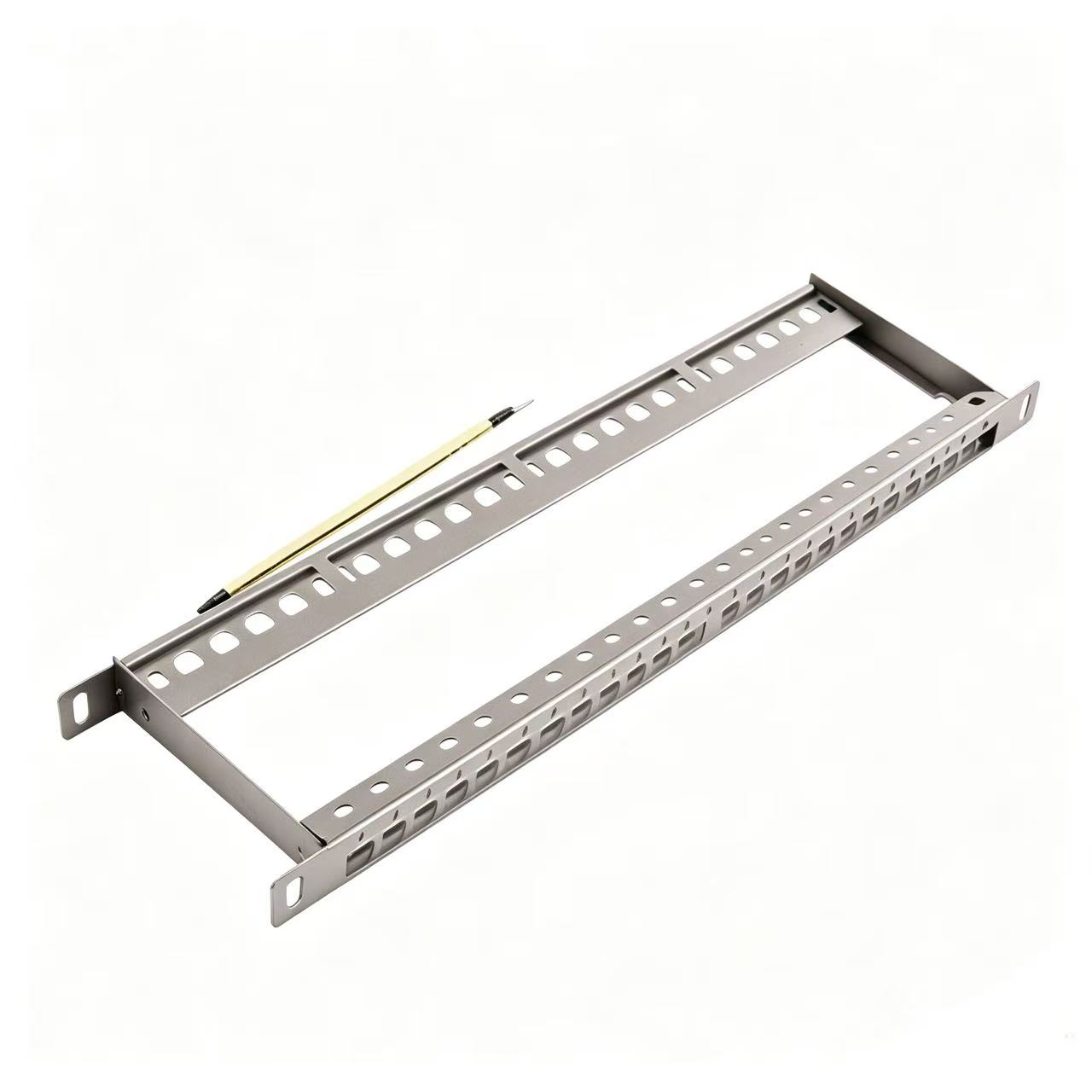

19 Inch 1U 24 Port Shielded Empty Patch Panel Stainless Steel Modular Patch Panel Bracket with Ground Wire

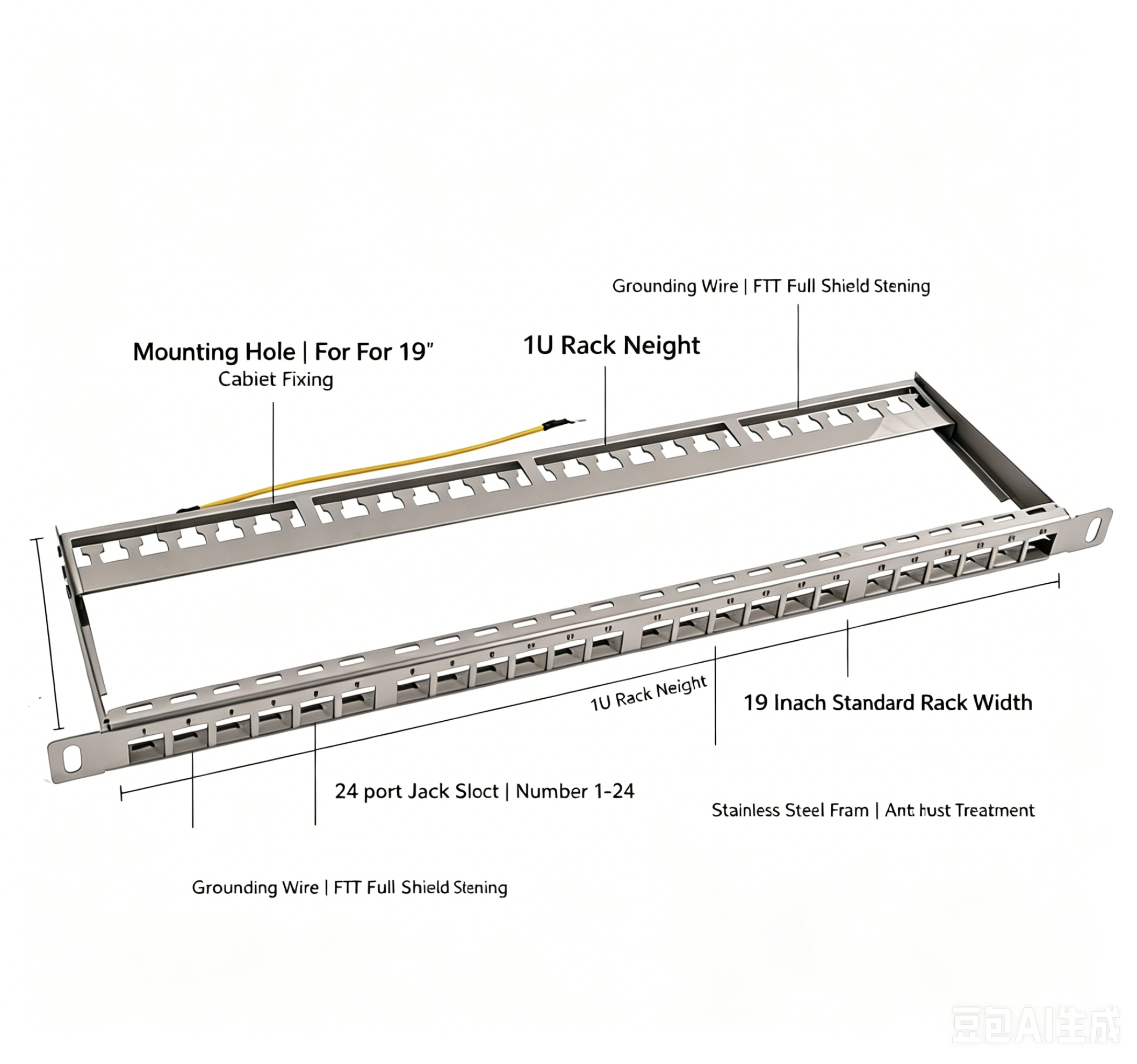

This is 19 inch 1U 24 port shielded empty modular patch panel frame, made of stainless steel with anti-rust surface treatment. Equipped with independent grounding wire to realize full shielding, effectively resist electromagnetic interference and guarantee stable network transmission.
Standard 19-inch rack mounting design, perfectly fits all standard network cabinets. Empty frame structure allows free assembly of various RJ45 keystone jack modules, flexible for customized wiring schemes. Widely applied in data center, server room, office integrated cabling, telecommunication project and enterprise network construction.
Availability:
Quantity:
  • WD-PP-24P-SHD

  • Ningbo Weidan Electronics Co., Ltd.


1. Product Overview

Our 19 Inch 1U 24 Port Shielded Empty Modular Patch Panel Frame is specially designed for standard server cabinet network integrated wiring.

Made of high-quality stainless steel with anti-rust surface treatment, solid structure and long service life. Equipped with dedicated grounding wire to achieve full shielding performance, effectively isolate external electromagnetic interference and ensure stable network signal transmission.

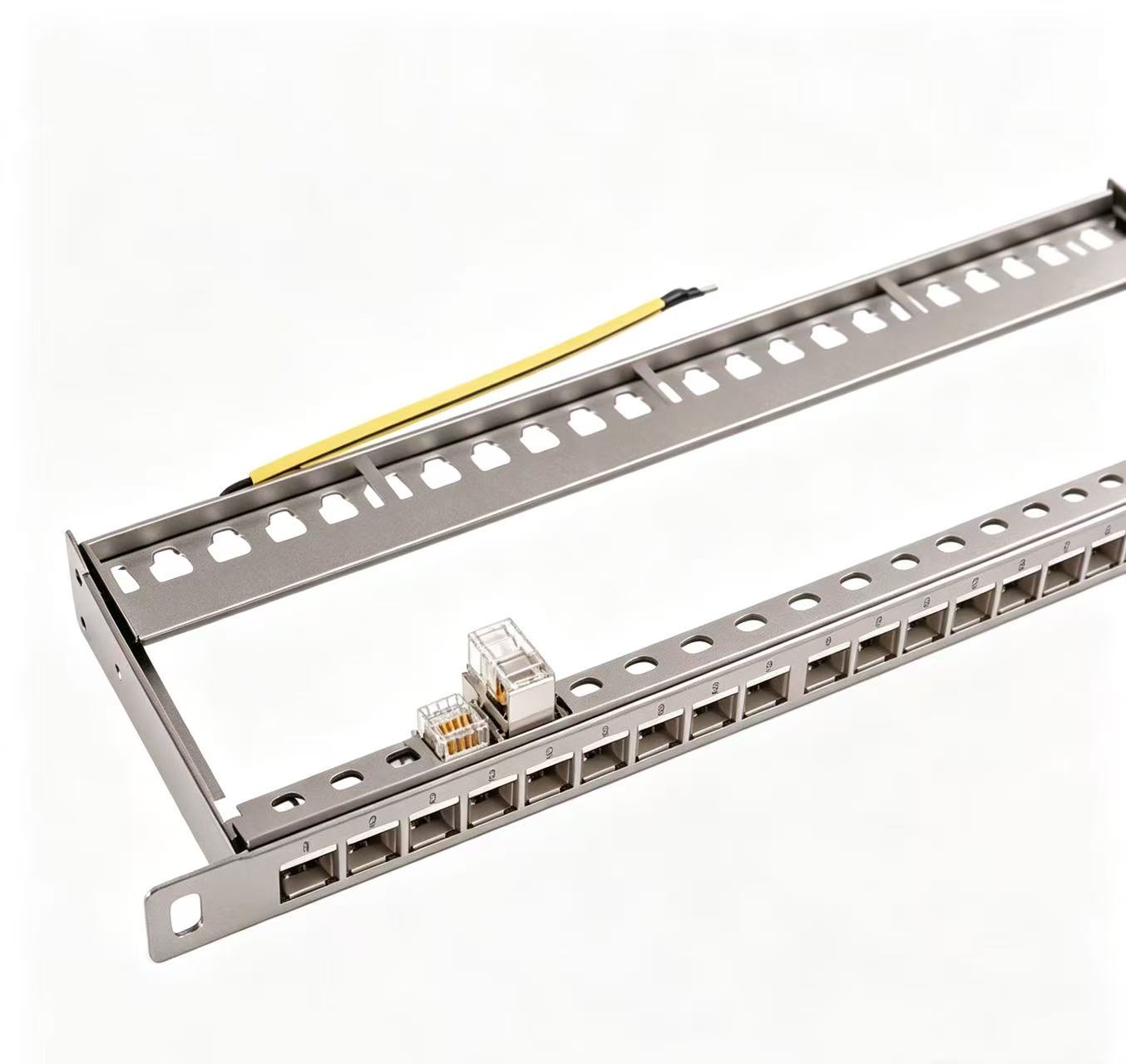

This is an empty frame patch panel without pre-installed RJ45 modules, users can freely assemble any keystone jack modules according to actual wiring demands, flexible to match Cat5e/Cat6/Cat6a shielded or unshielded modules. Standard 19-inch rack mount design, perfectly compatible with all 1U standard network cabinets.


2. Key Features

✅ Standard 1U rack height, fits 19-inch standard cabinet installation

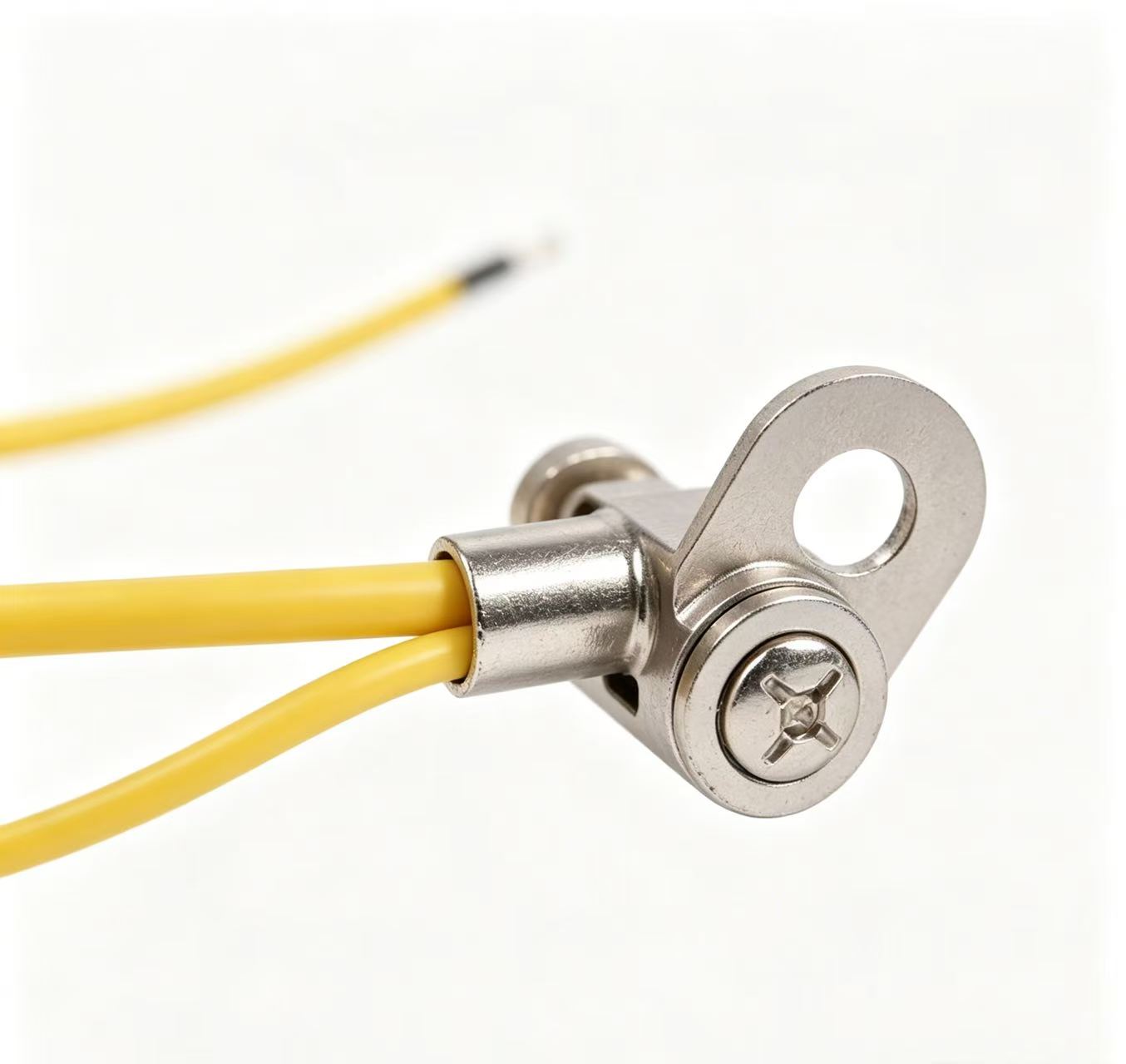

✅ Full shielded design with independent grounding wire, strong anti-interference ability

✅ Stainless steel material with anti-rust coating, corrosion resistant & durable

✅ Empty modular structure, freely assemble RJ45 keystone jacks

✅ 24-port reserved slots, neat cable management, easy wiring & maintenance

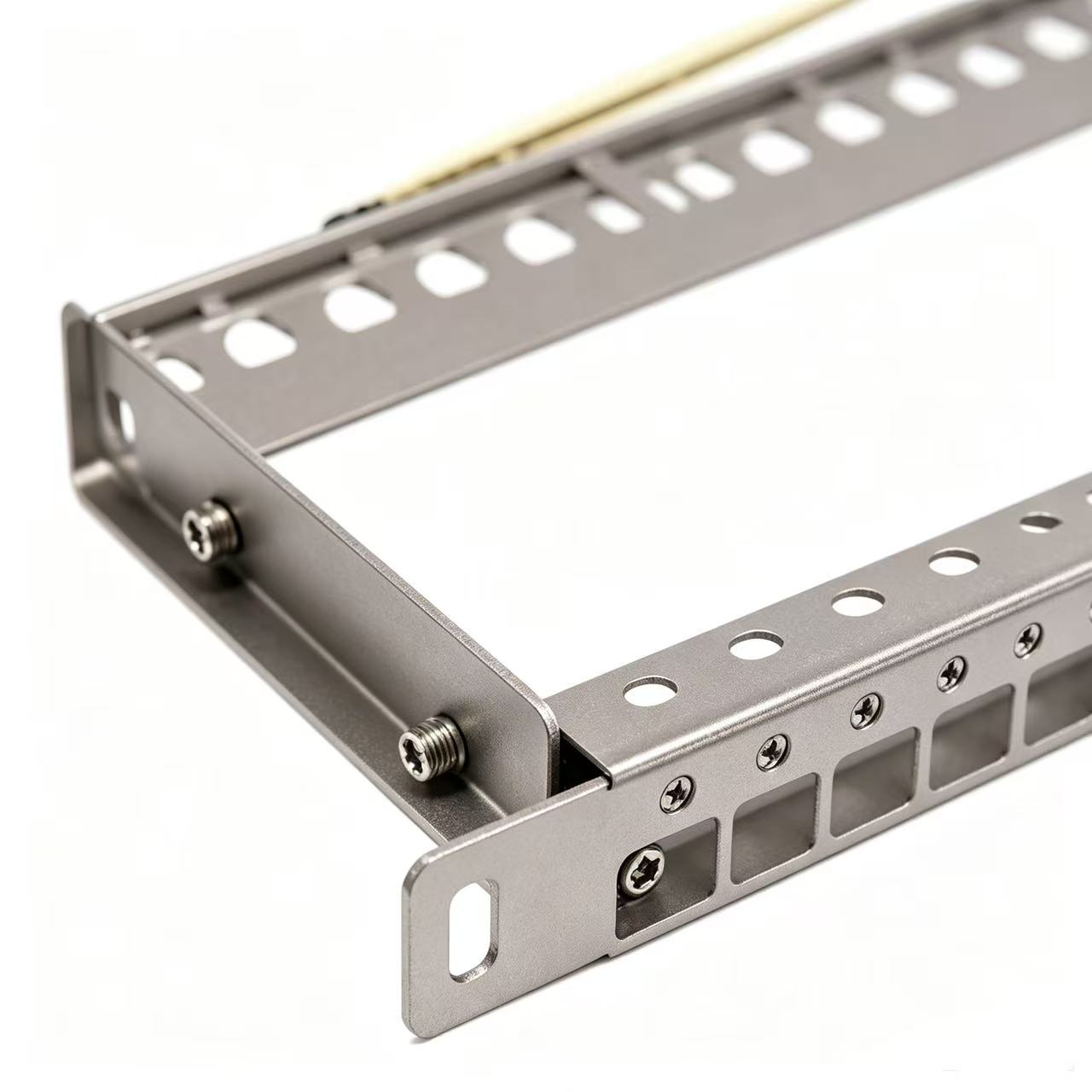

✅ Precise stamping process, stable structure, long-term use without deformation

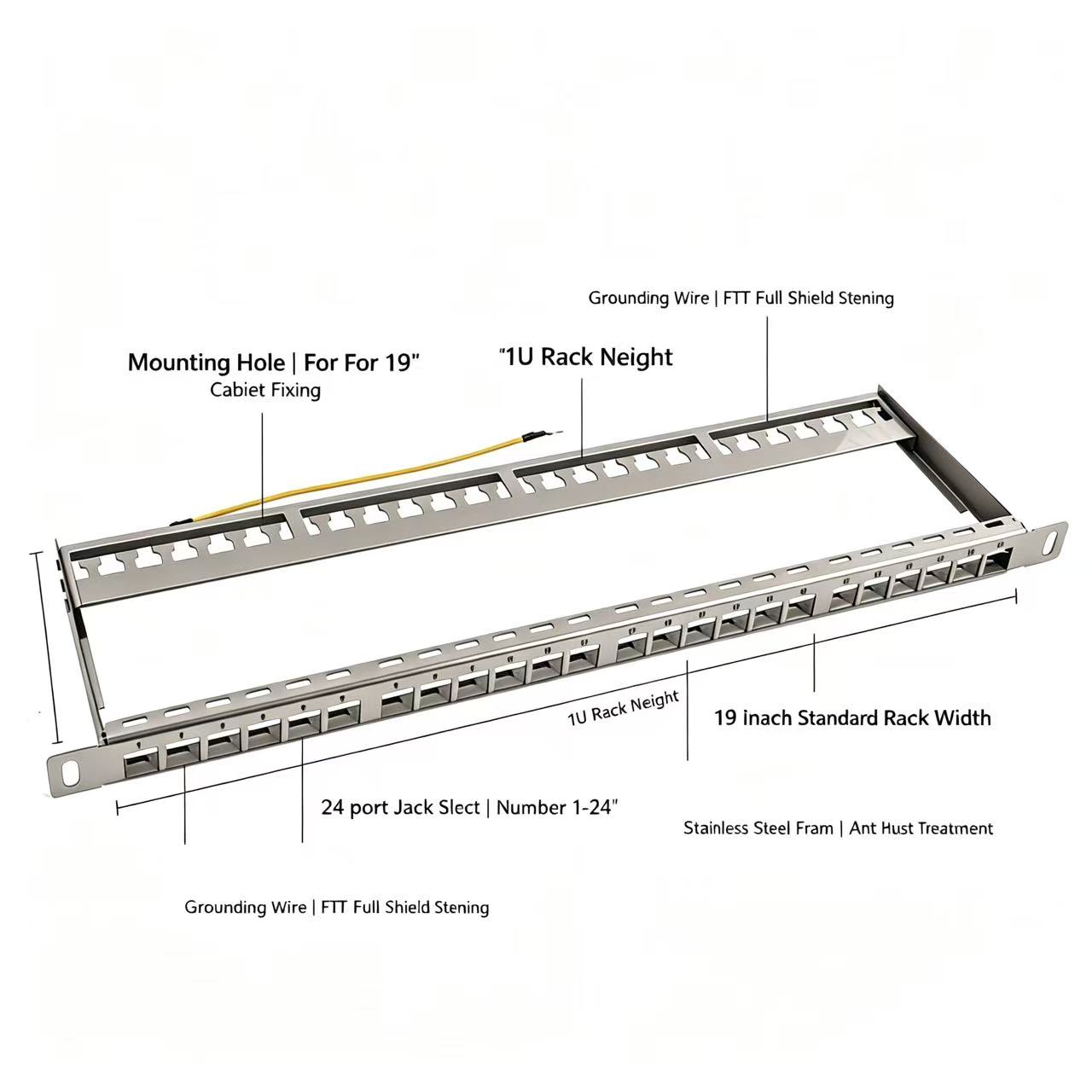

3. Technical Specifications

  • Product Model: 1U-24P-SHLD-EMPTY

  • Rack Height: 1U

  • Standard Width: 19 Inch

  • Port Quantity: 24 Ports

  • Shell Material: Stainless Steel

  • Surface Treatment: Anti-rust Treatment

  • Shielding Type: Full Shielded with Ground Wire

  • Mounting Way: Rack Mount

  • Compatible Modules: All standard RJ45 keystone jack modules

4. Application Scenarios


▶ Data Center & Server Room Wiring

▶ Enterprise Office Network Cabling Project

▶ Intelligent Building & Community Weak Current System

▶ Telecom Communication Cabinet Layout

▶ School, Hospital, Factory Integrated Network Construction

5. Our Advantages

  1. Strict raw material inspection, stable product quality, batch supply capability

  2. Support customized size, port quantity and surface processing as customer requirements

  3. Factory direct supply, competitive factory price without middleman markup

  4. Complete packaging, good protection for long-distance sea & air transportation

  5. Fast delivery cycle, professional after-sales technical support for global partners
