24 Port CAT6 Blank Patch Panel 1U 19 Inch Modular Empty Patch Panel with Cable Management Bracket

This is a 1U standard 19-inch 24-port modular blank patch panel, compatible with CAT5e/CAT6 unshielded & shielded network modules. Comes with a detachable rear cable management tray to organize cable behind the panel, avoiding wire tangling and protecting module terminals. All steel metal frame, rack mount design, widely used in server room, office weak current cabinet, data center comprehensive wiring system. Support custom port quantity, shielded/non-shielded version.

Port Number:	24 Port
Height:	1U
Standard:	19 Inch Rack Mount
Category:	CAT6 Compatible
Material:	Cold Rolled Steel
Accessory:	Cable Management Bracket, Mount Screws, Cable Ties
Type:	Empty Blank Modular Patch Panel
Availability:

Quantity:



Inquire Add to Basket

Model:
WD-CT24U6
Brand:
WEIDAN
Code:
WD-CT24U6-1

Product Description

Product Overview

Our 24 port CAT6 blank modular patch panel adopts hollow empty frame design, you can freely match shielded or unshielded RJ45 Cat5e/Cat6 modules according to project demands. Standard 1U height fits all 19-inch network cabinets, perfect for commercial office, factory, school and data center structured cabling.

Key Features

Empty modular structure, flexible combination of network modules
Full metal cold-rolled steel housing, anti-rust black powder coating
Equipped with independent rear cable management bracket to fix messy cables
Clear white number label strip for easy circuit identification & maintenance
Stable rack mount lugs, comes with installation screws and cable ties
Support high-speed Gigabit/10G Ethernet transmission with Cat6 modules
Lightweight and durable, easy to install and rearrange network ports

Specification

Parameter	Specification
Product Model	WD-CT24U6
Product Type	24 Port 1U Empty Keystone Patch Panel

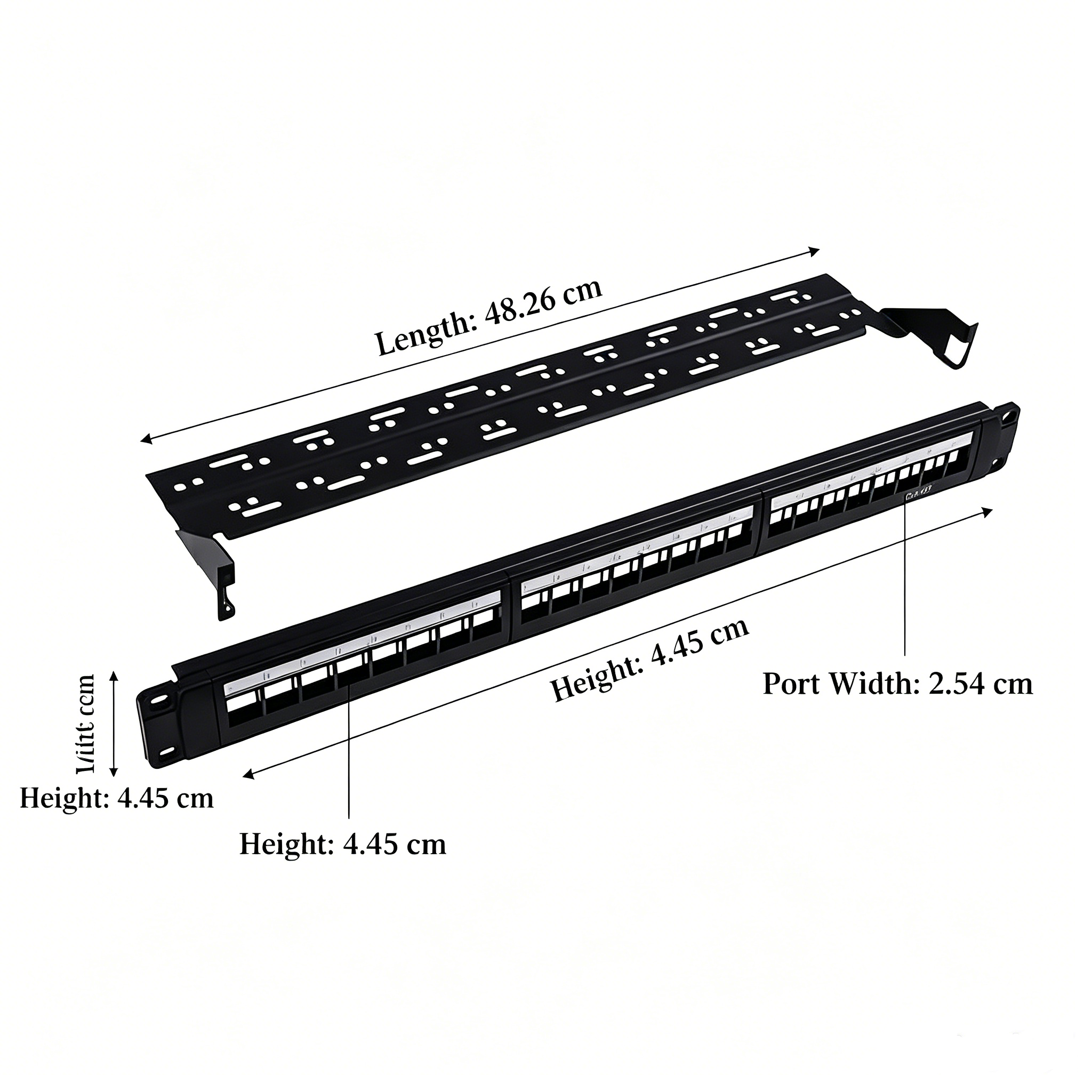

Overall Dimension	483mm (Length) × 44.5mm (Height) × 130mm (Depth) 19 Inch (Standard Rack Width) × 1U (Standard Rack Height)
Single Port Width	25.4mm / 2.54cm
Total Port Quantity	24 Empty Keystone Slots
Main Material	1.2mm Thick Cold Rolled Steel, Matte Black Anti-Rust Powder Coating
Compatible Modules	Cat5e / Cat6 UTP & STP RJ45 Keystone Jacks, Telephone Keystone Modules
Included Accessories	Rear Cable Management Bar, Mounting Screws
Installation Standard	Fits All 19 Inch Standard Server / Network Racks
Certifications	CE, RoHS Compliant
Application Scenario	Data Center, Office Network Room, LAN Cabling Engineering
