WP-CAT6-24P
WEIDAN
WD-PP024

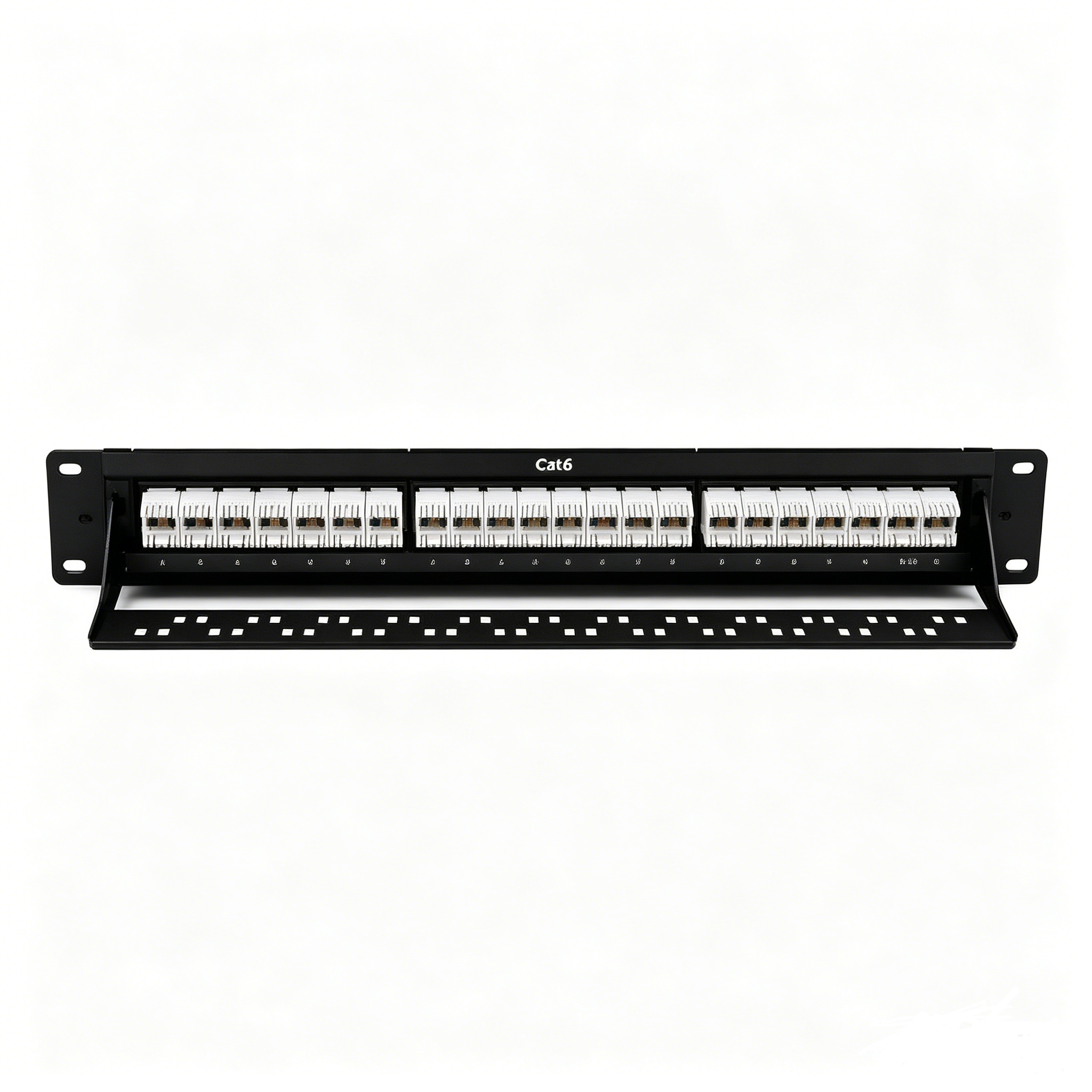

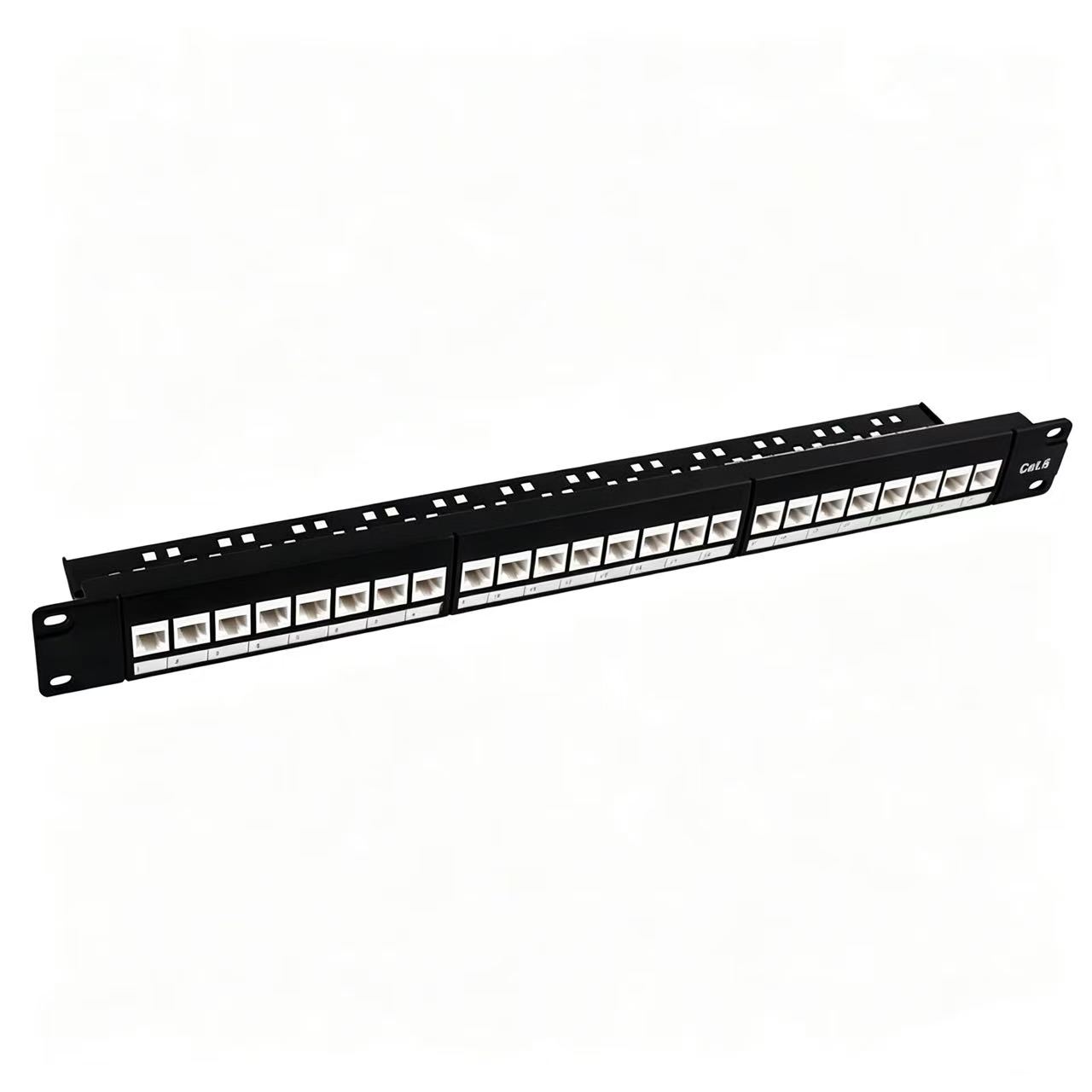

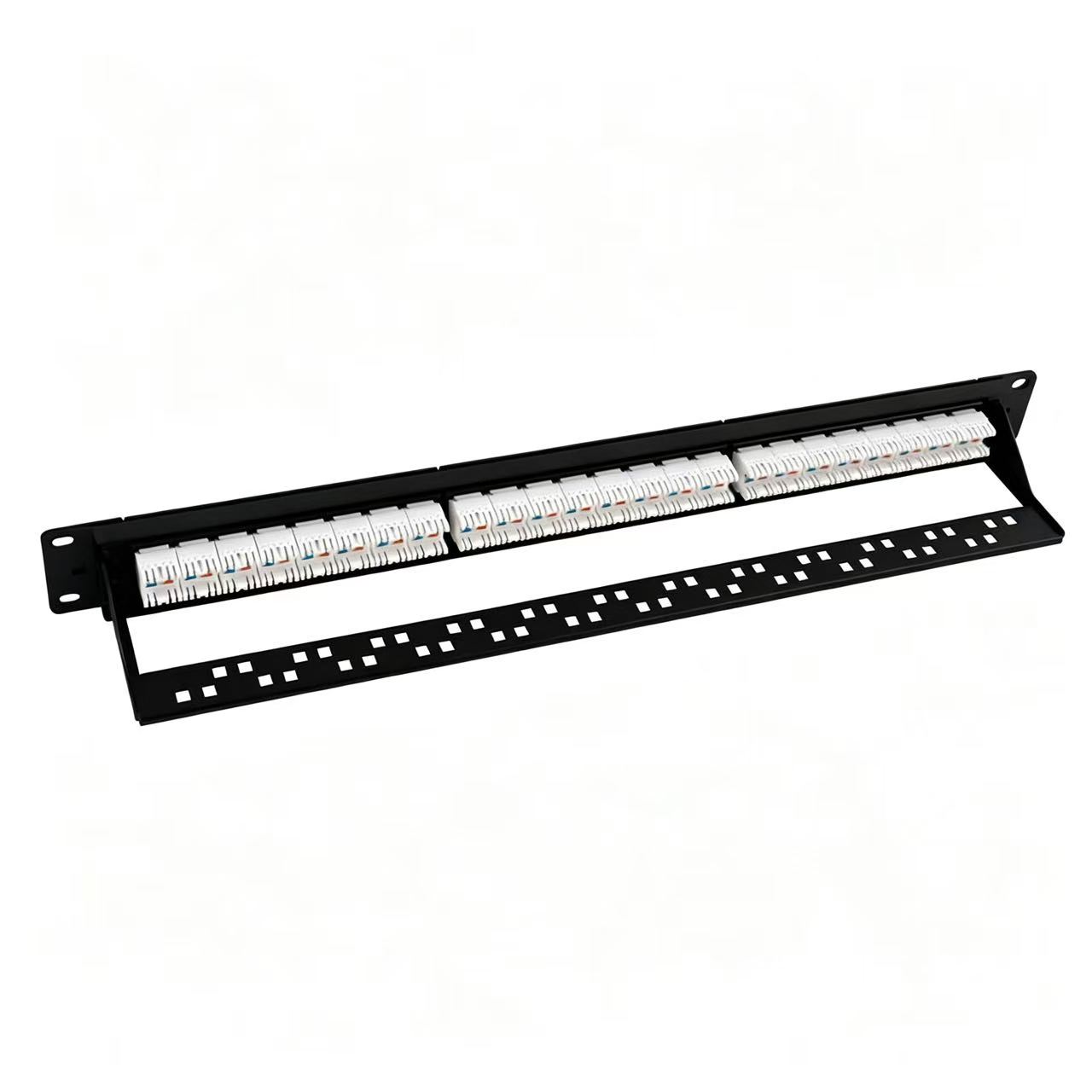

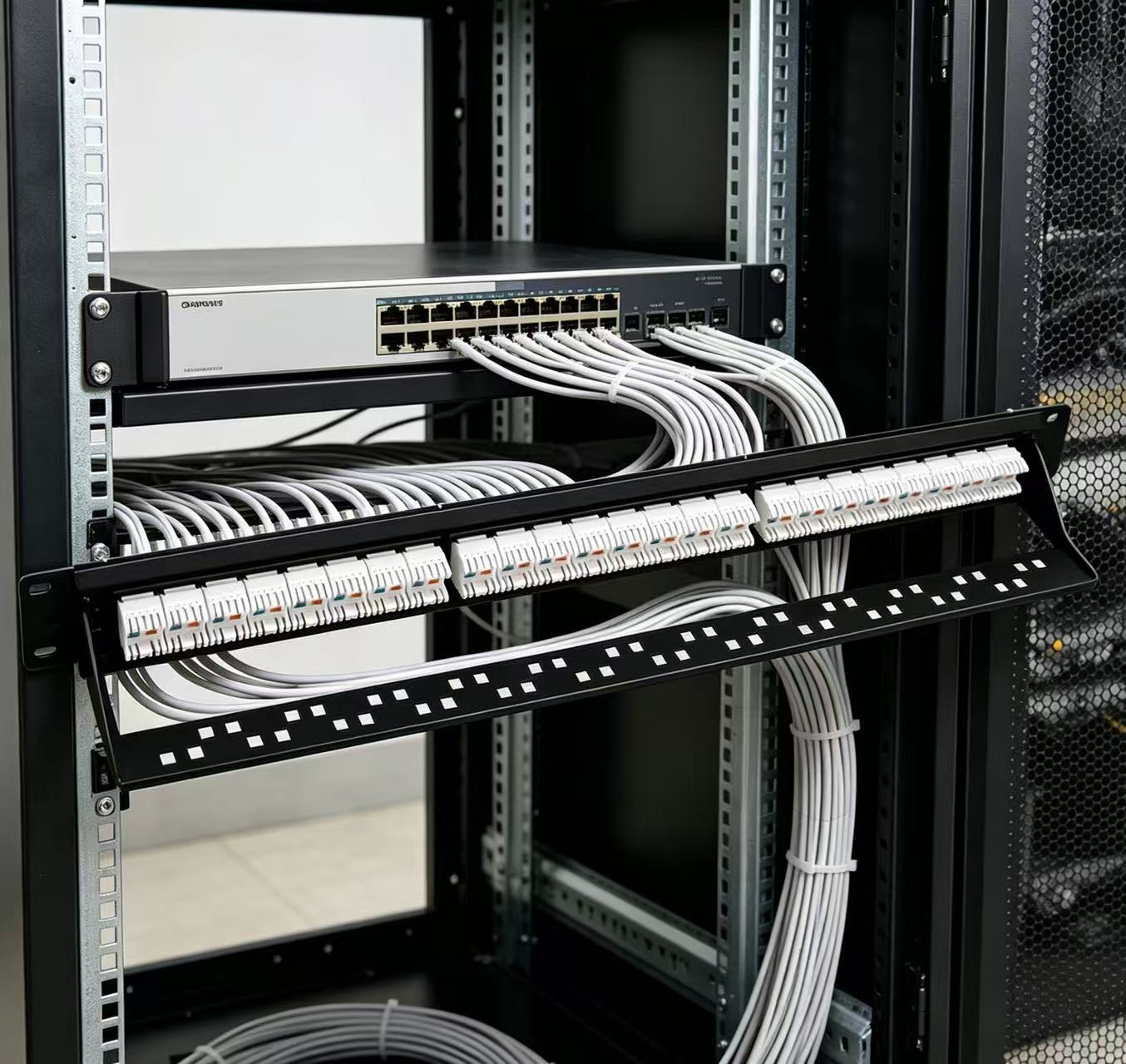

This is 1U 19 inch rack mount Cat6 unshielded patch panel, designed for integrated wiring
system in data center, office, school, factory network room. 24 RJ45 ports for stable gigabit
networktransmission, with rear IDC punch down terminals and cable management tray for tidycablearrangement.

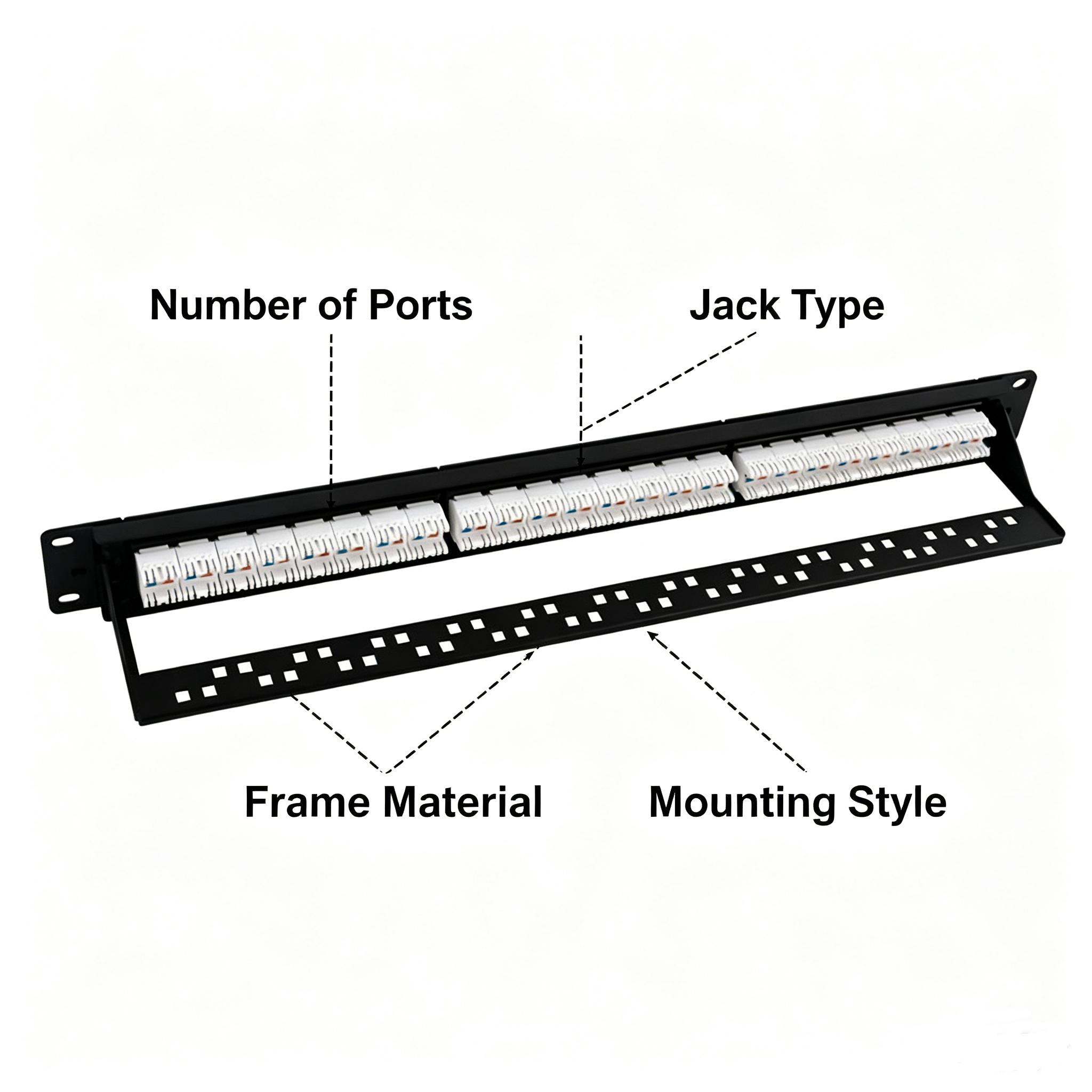

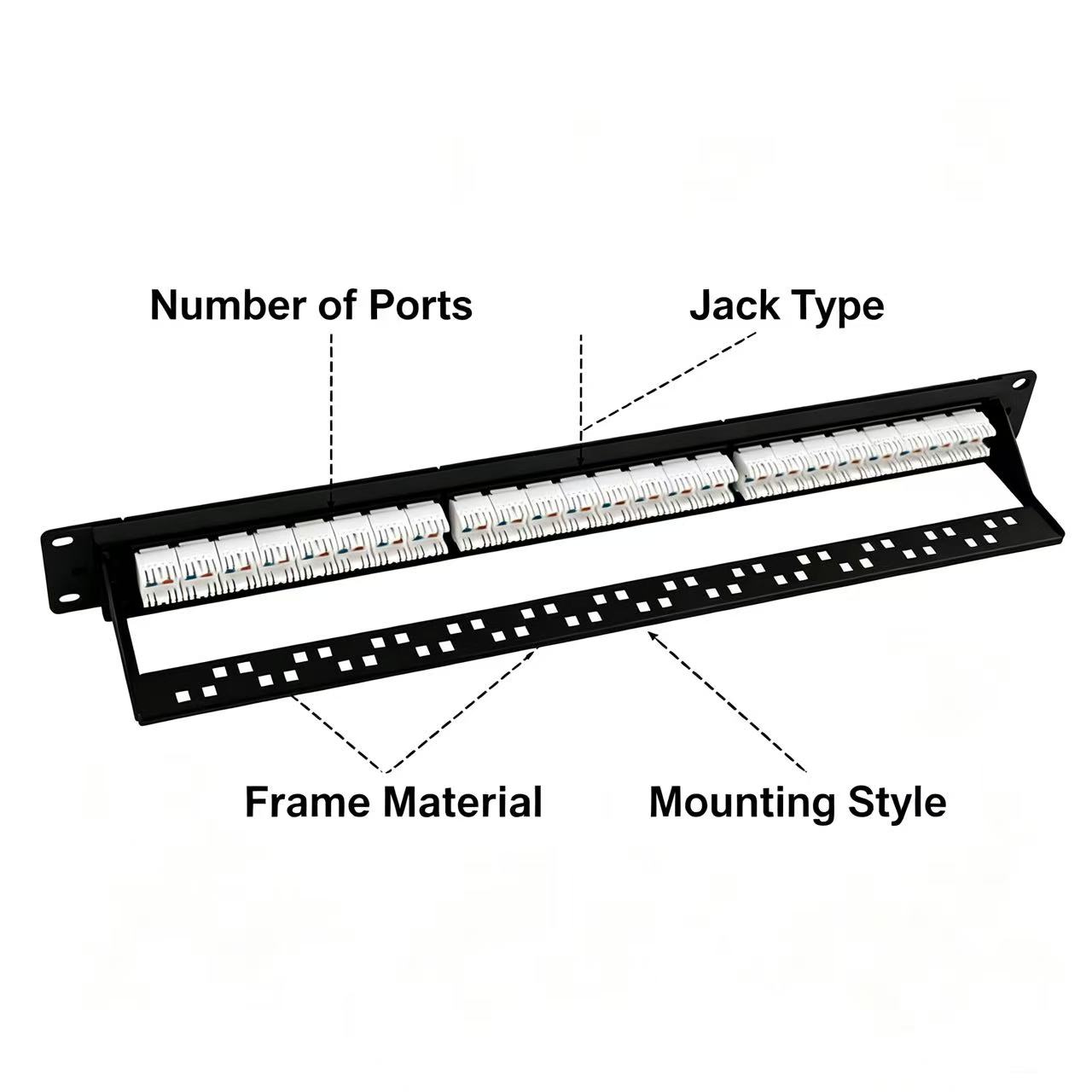

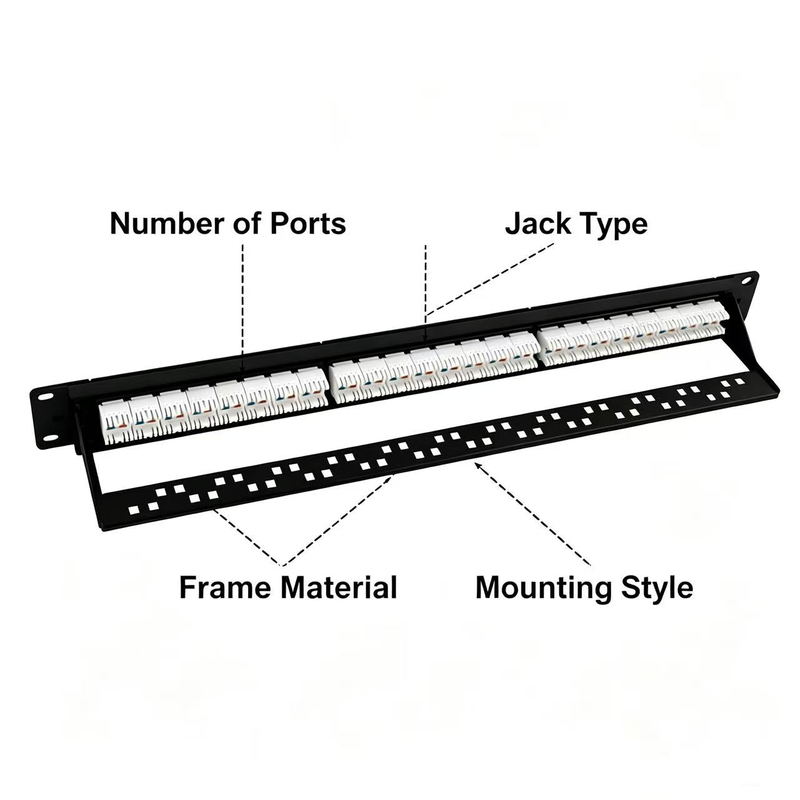

Number of Ports
24 RJ45 ports, full 24-channel Gigabit transmission, each port with clear serial number marking.
Jack Type

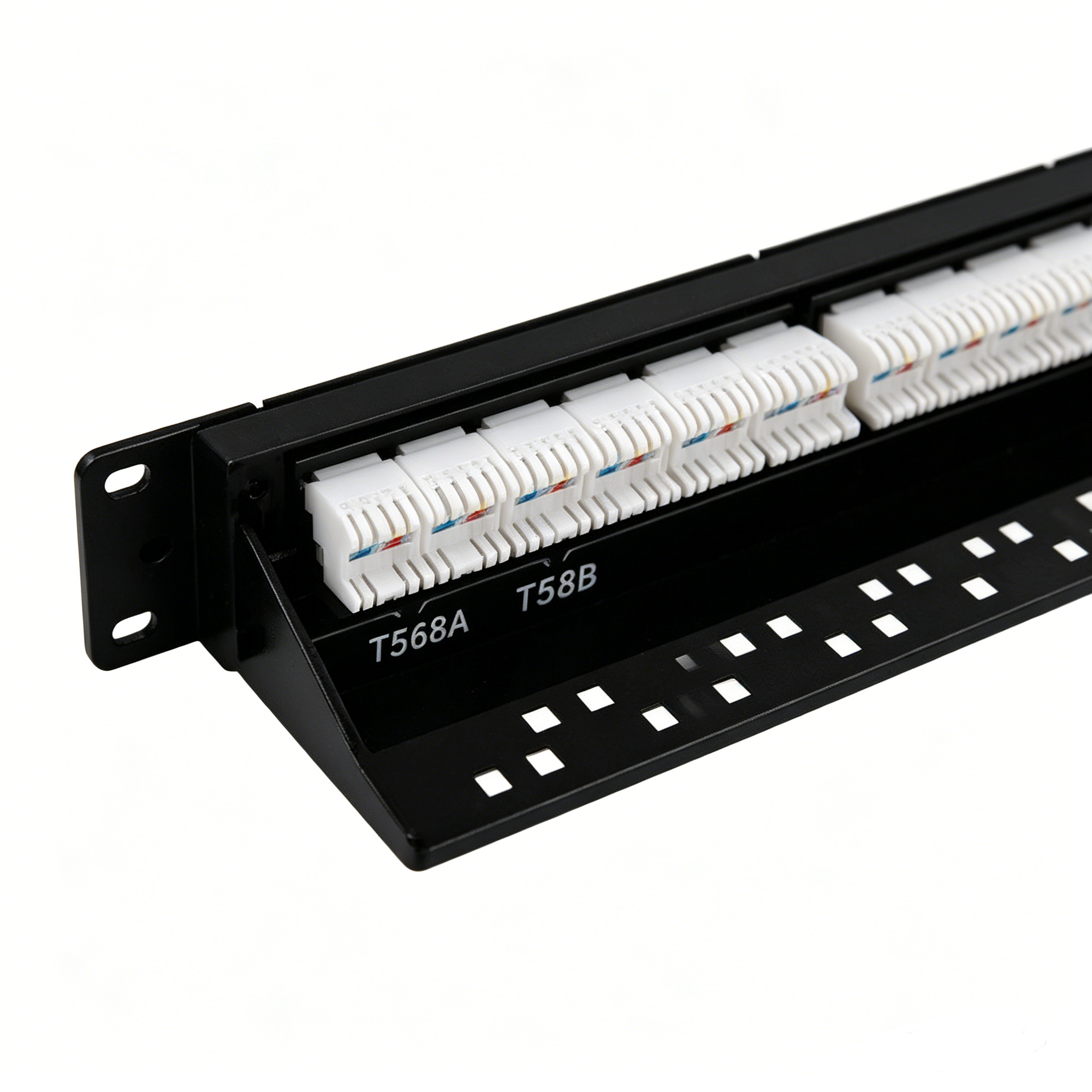

Cat6 UTP RJ45 jack, 3μ gold-plated contact pins, supports T568A & T568B dual wiring standards, stable 250MHz bandwidth performance.
Advantages
-Standard 1U 19-inch design, easy to install in server cabinet
-Cat6 performance, stable high-speed data transfer

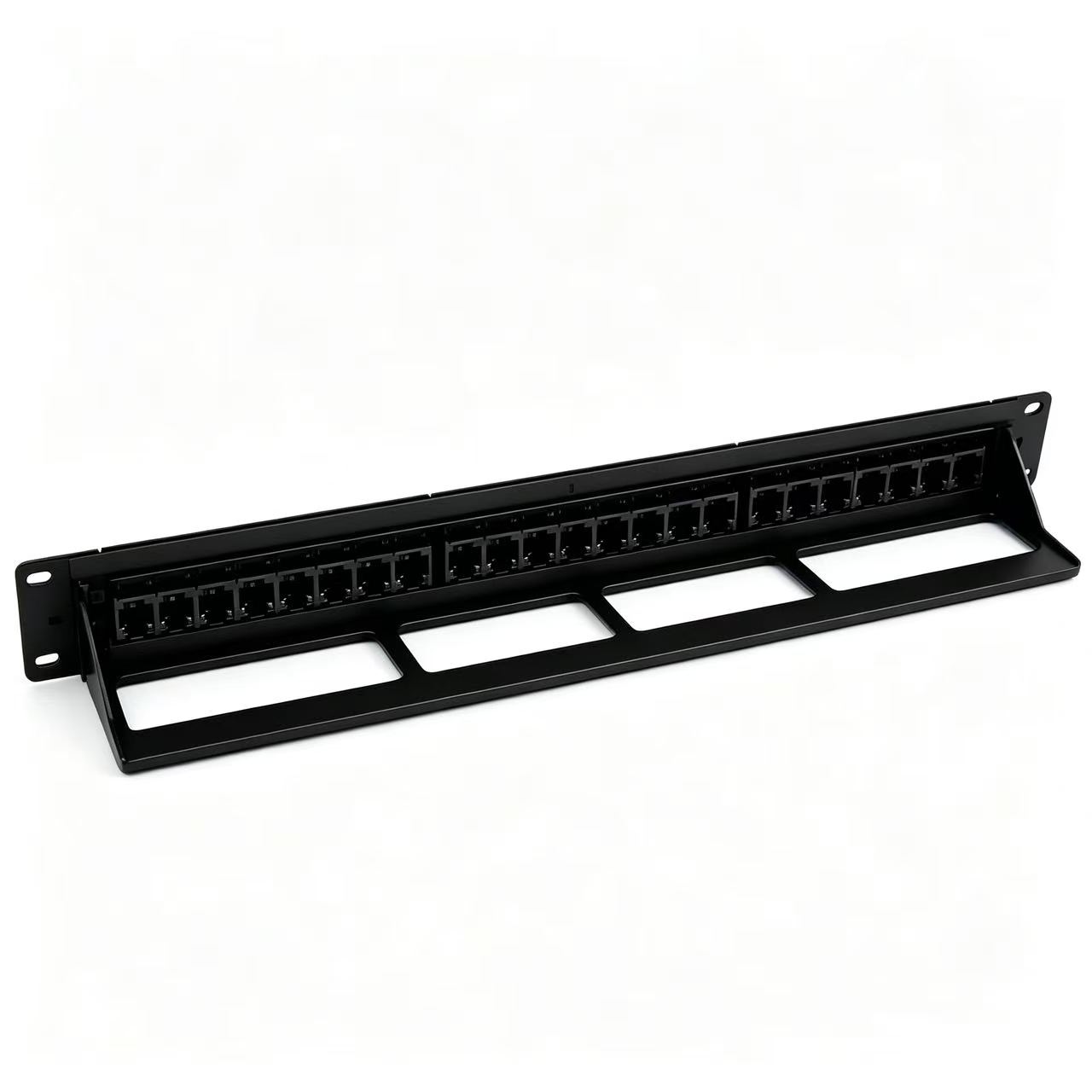

-Built-in cable management bracket, avoid cable tension damage
-Gold-plated RJ45 contact, anti-oxidation, long service life
-Support T568A / T568B dual wiring standard
Specifications
Item | Parameter |
Product Name | 24 Port Cat6 UTP Patch Panel |
Number of Ports | 24 RJ45 Ports |
Jack Type | Cat6 UTP RJ45, 3μ gold-plated contact pin, support T568A / T568B wiring |
Bandwidth | 250MHz, Gigabit 10/100/1000Mbps transmission |
Frame Material | Cold rolled steel, matte black anti-rust electrostatic coating |
Mounting Style | 1U height, 19-inch standard rack mount |

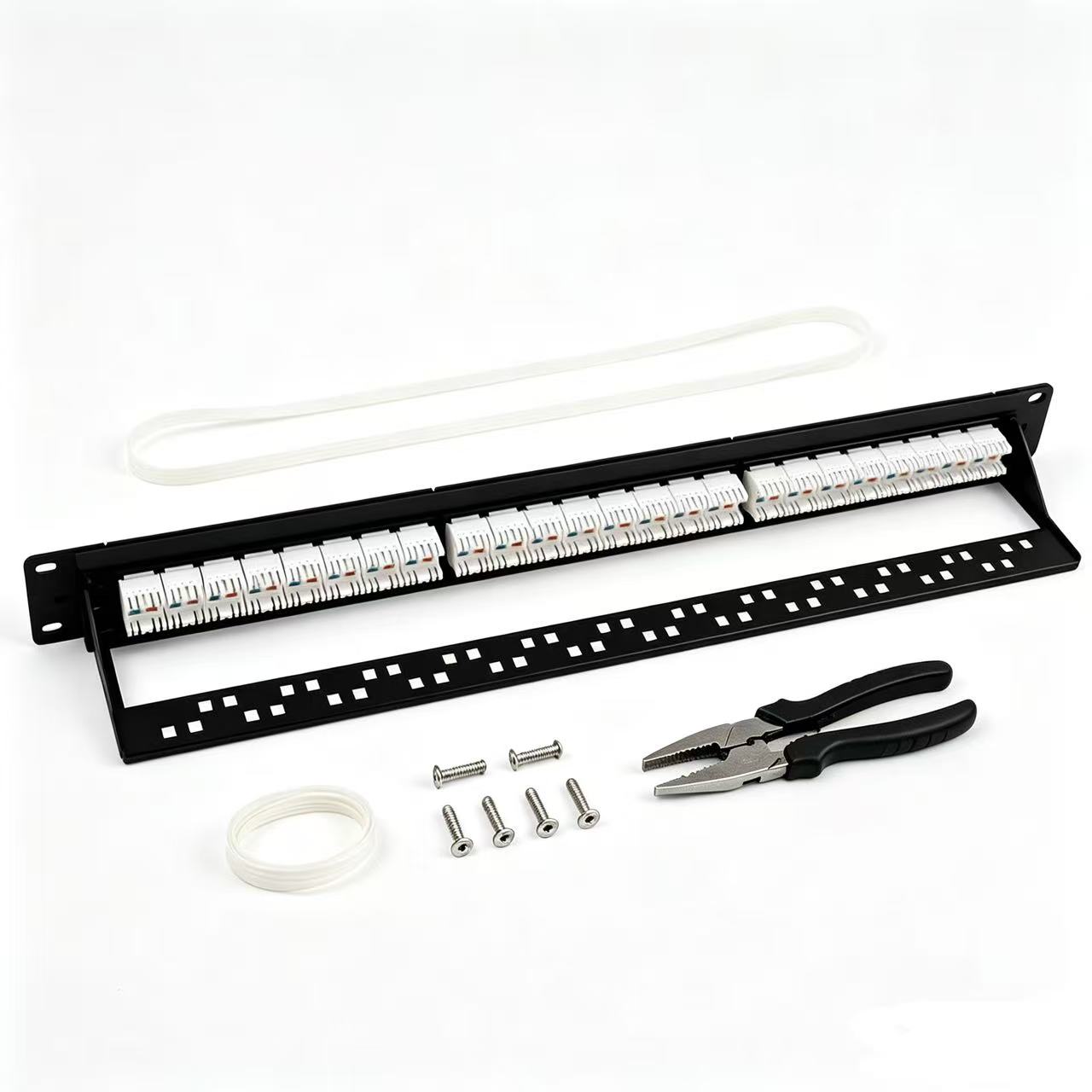

Accessory | Integrated rear cable management tray + mounting screws |
Compatible Cable | Cat6 / Cat5e / Cat5 UTP LAN Cable |
Certification | Cat6 / Cat5e / Cat5 UTP LAN Cable |
Certification | CE, RoHS Compliant |
Operating Temperature | -10ºC ~ +60ºC |
Plugging Life | ≥1000 times plug & unplug cycles |
Office network, computer room, data center, campus network, hotel integrated cabling, engineering wiring project
Export carton packaging, safe protection. Fast lead time, support customized logo and package. Support sample order for quality test.
