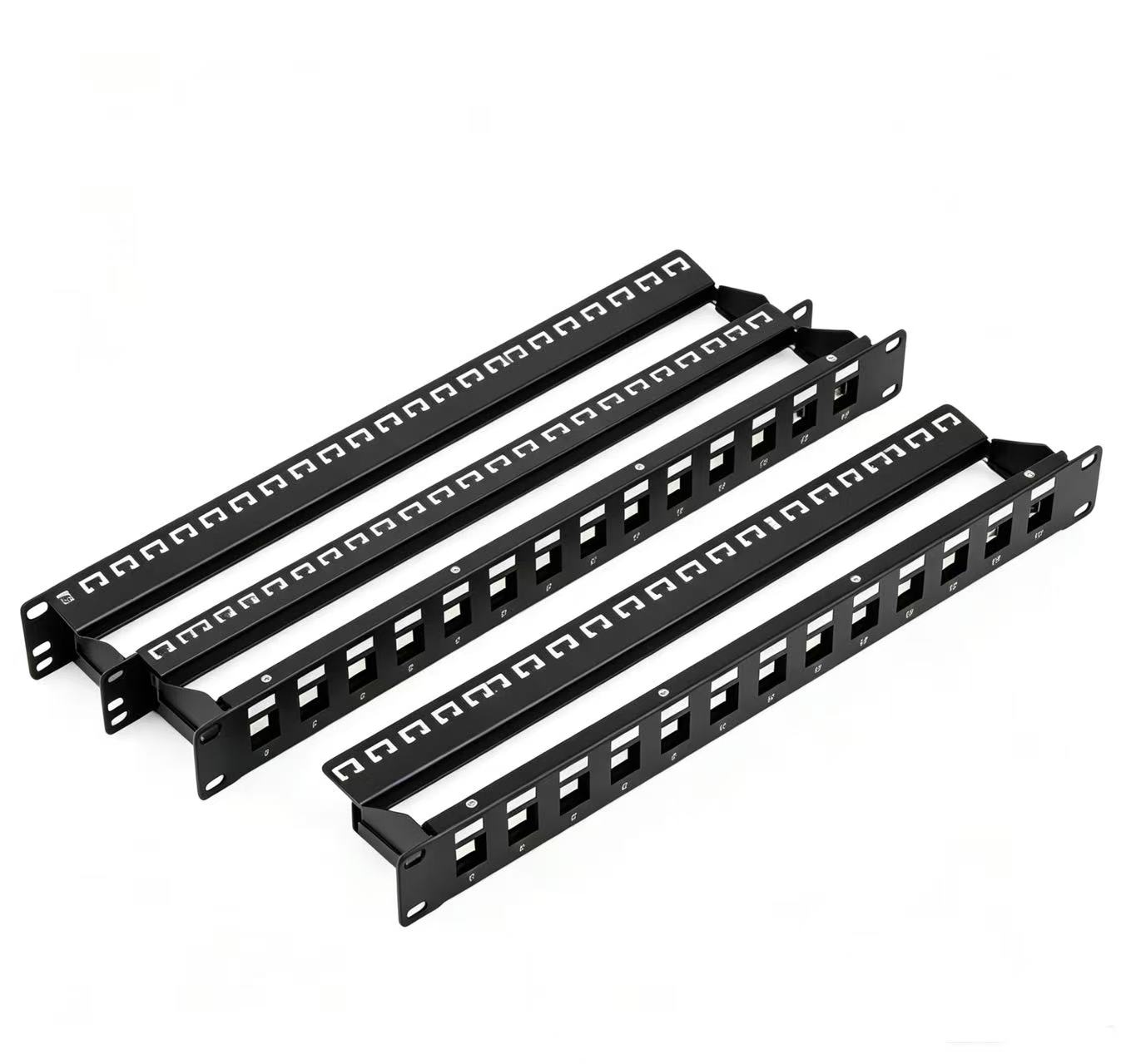

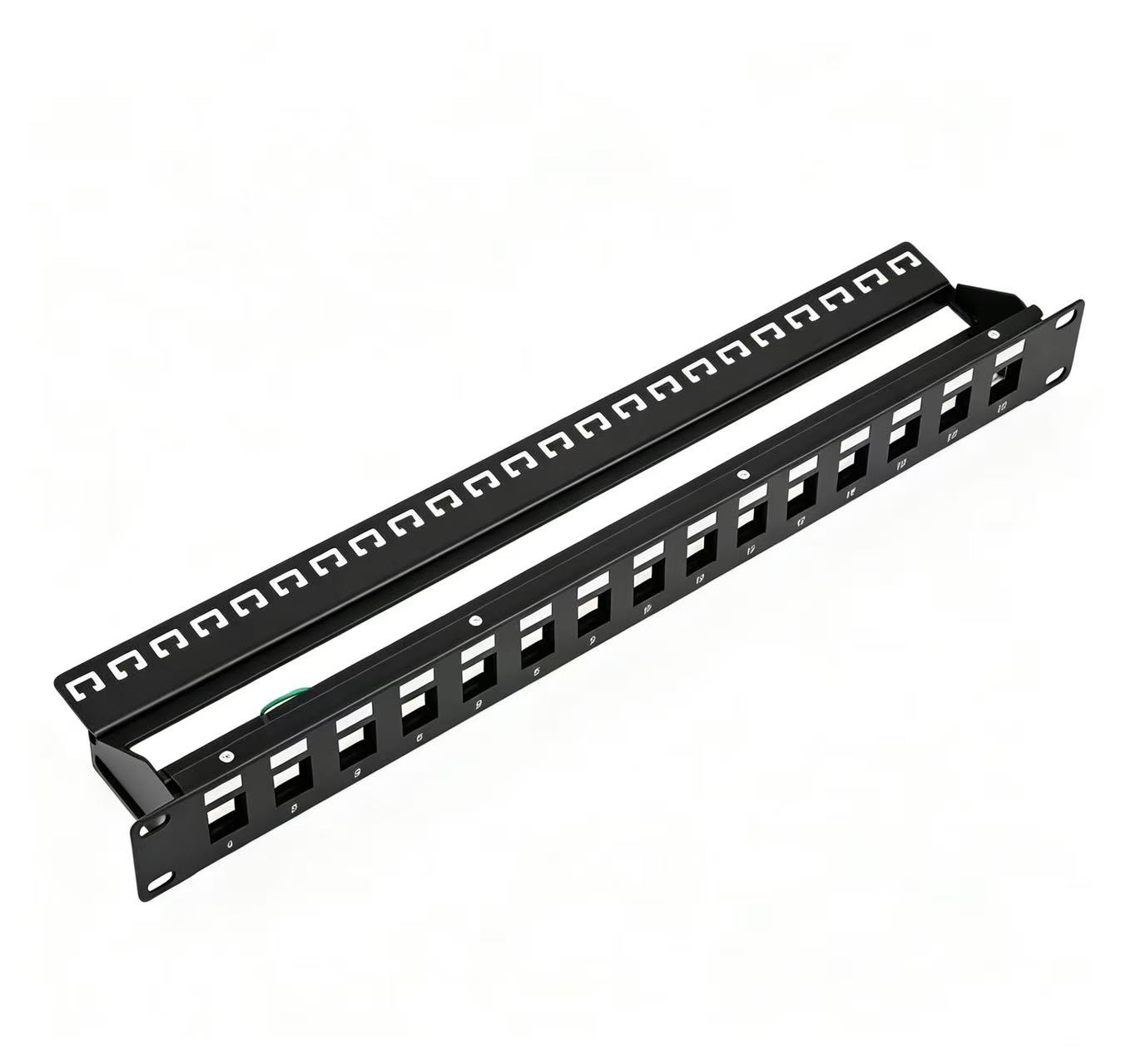

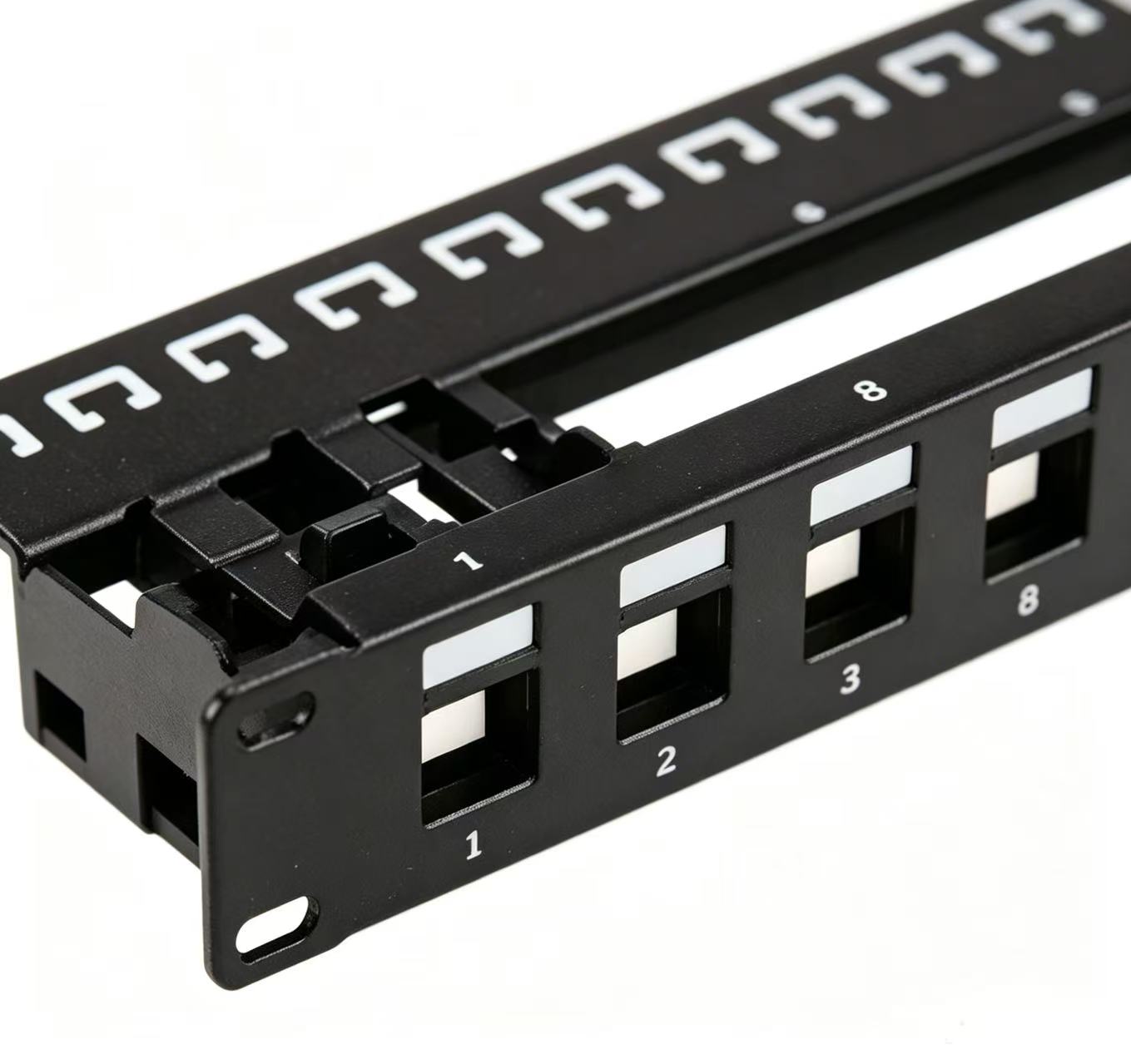

24 Port Unloaded Keystone Patch Panel | 1U 19 Inch Rack Mount Empty Patch Panel

1U 19-inch 24 port empty keystone patch panel, rack mount unloaded design for freely installing Cat5e/Cat6/Cat6A keystone jacks. Tool-free module assembly, sturdy steel structure, full installation accessories included. Ideal for data center and office network integrated cabling projects, factory wholesale available.
Availability:
Quantity:
  • WD-LIYUAN-16P

  • Ningbo Weidan Electronics Co., Ltd.


Keystone Jack Convenience

  •  Our 16-Port Blank Keystone Patch Panel adopts flexible keystone jack design, realizing centralized                        termination and management of various multimedia cables in the cabinet.

  •  You can freely snap in standard Cat5e/Cat6/Cat6A network keystone jacks, as well as coaxial, fiber, HDMI            and audio modules as needed.


      Important Notes

  • Wall-mounted installation needs matched mounting brackets to reserve enough space for the rear cable management bar.

  • Compatible with universal standard-size keystone modules; customized proprietary keystone jacks shall be matched with the same brand accessories.

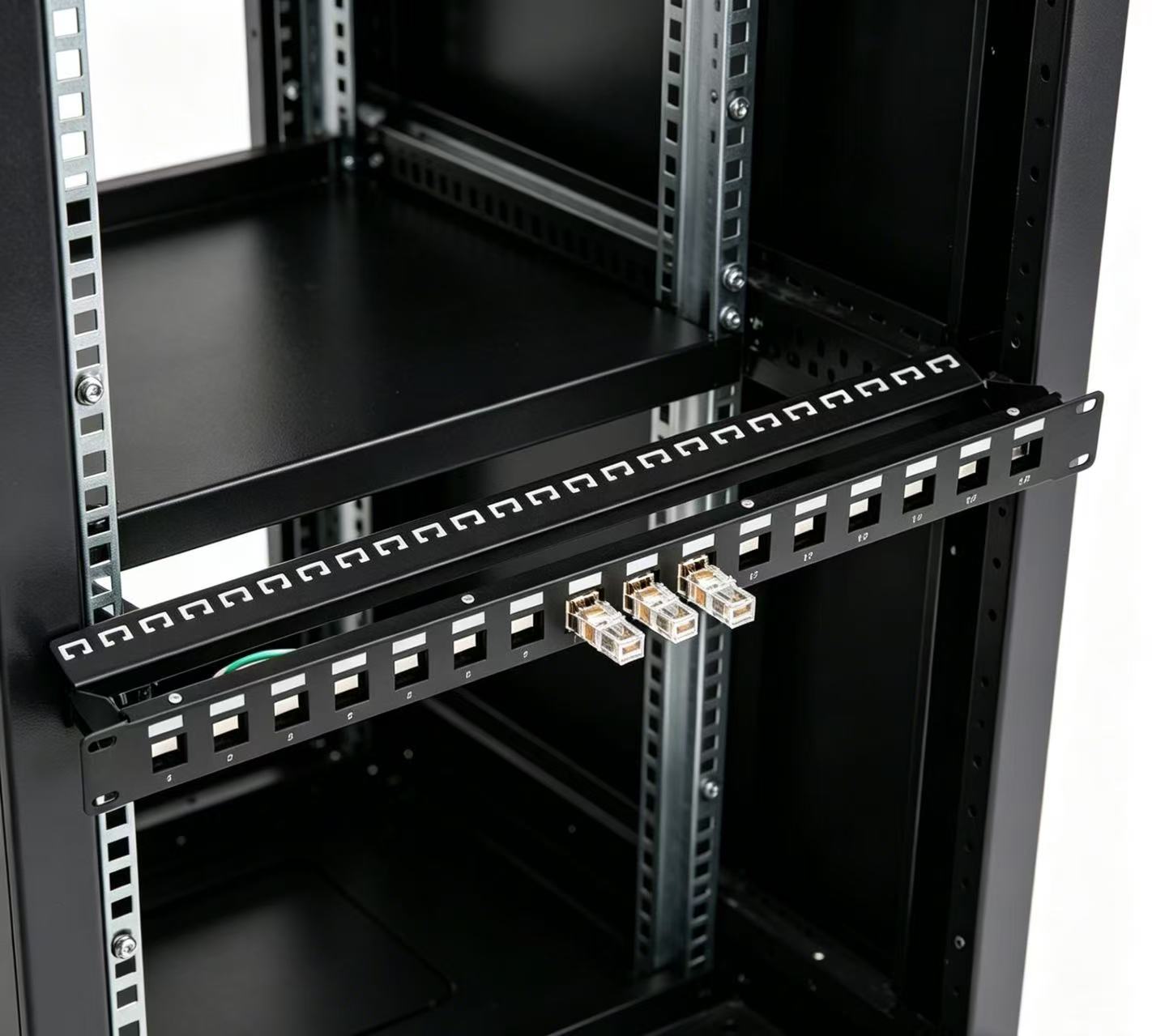

  • Standard 1U height, fits all mainstream 19-inch standard server cabinets and network cabinets.

     Package Contents

  • 1 × 16-Port Blank Keystone Patch Panel

  • Mounting screws for cabinet installation

  • 1 × User Manual

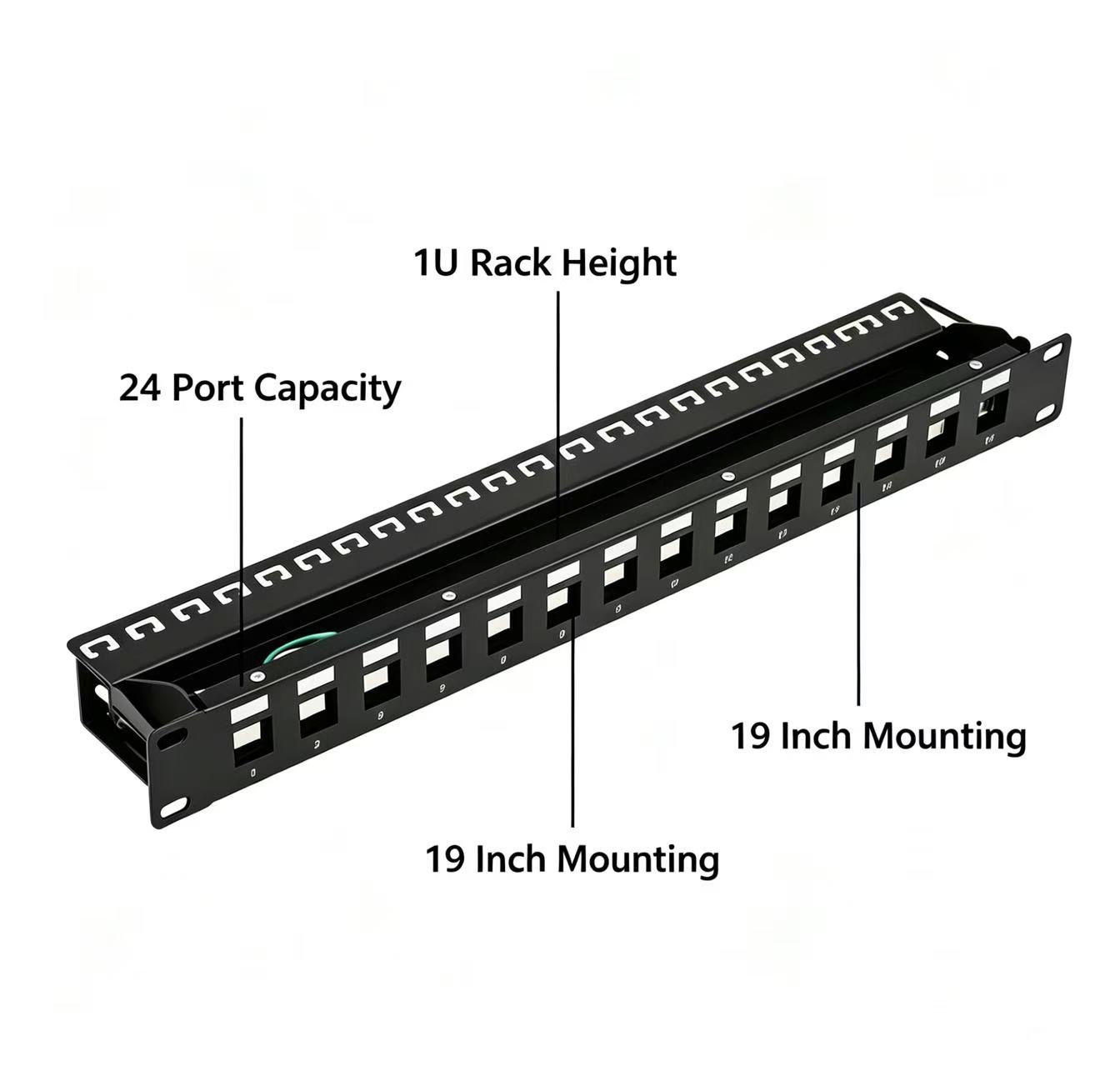

1)
24 Port Capacity
Supports flexible assembly of various standard keystone modules

2)1U Rack Height
Standard rack unit design, saves cabinet space

3)
19 Inch Mounting
Universal fit for all standard 19-inch server & network cabinets

4)Core Specifications

• Rack Height: 1U

• Mount Standard: 19 Inch Rack Mount

• Port Quantity: 24 Empty Keystone Ports

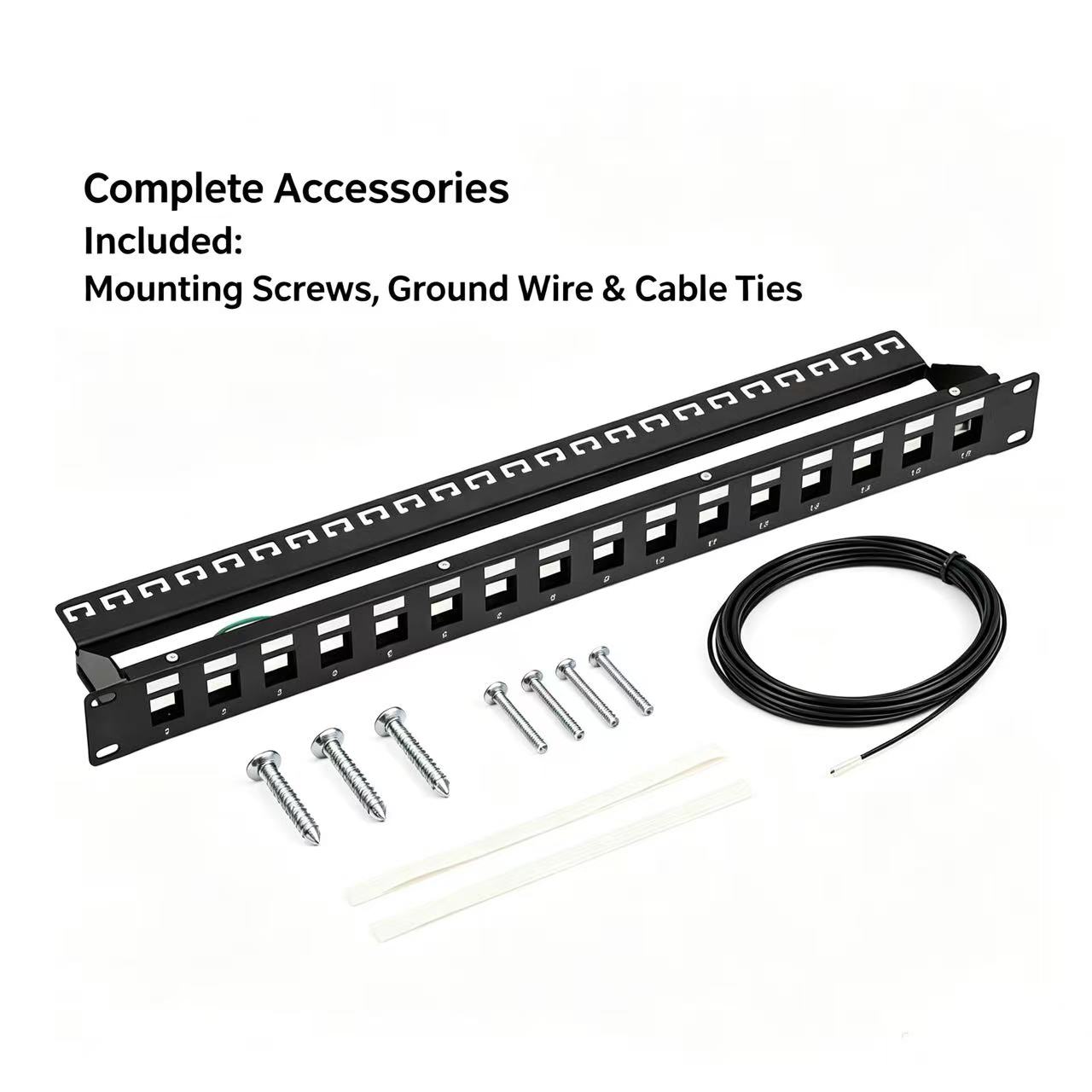

Complete Matching Accessories

-Full set of mounting screws for cabinet installation

-Equipped with grounding wire for safe circuit connection maintenance

-Supplied cable ties for standardized cable arrangement


Product Technical Specifications

Parameter Item

Detailed Spec

Product Model

24 Port Blank Keystone Patch Panel

Rack Height

1U Standard Rack Unit

Mounting Standard

19 Inch Universal Rack Mount

Compatible Module

CAT5e / CAT6 / CAT6A UTP & STP Keystone Jacks, Fiber / Coax / HDMI Modules

Material

Cold Rolled Steel, Black Powder Coating

Port Number

24 Empty Keystone Slots

Built-in Feature

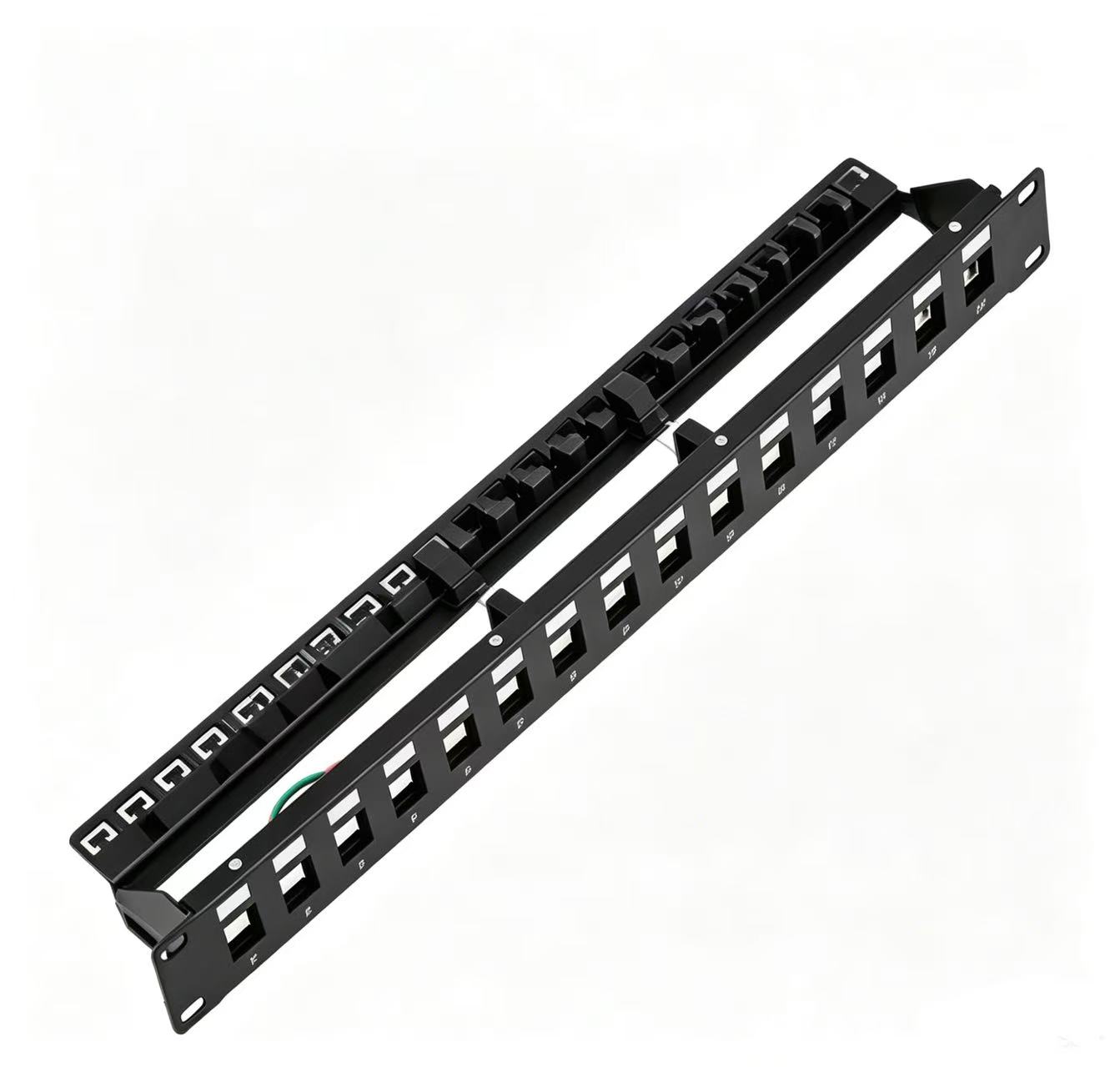

Integrated Cable Strain Relief Bar

Installation Accessories

Mounting Screws, Ground Wire, Cable Ties Included

Application Scene

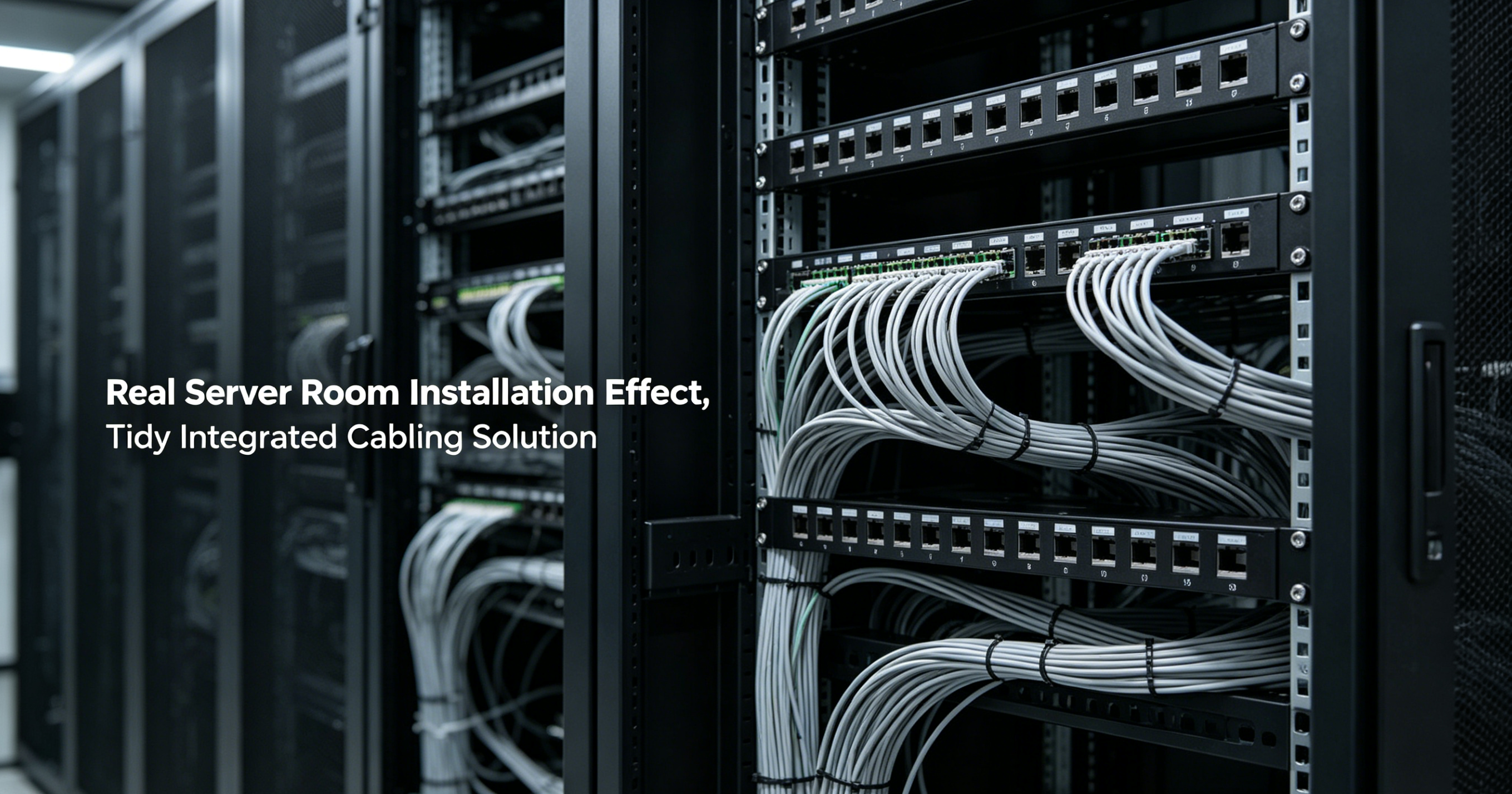

Server Room, Network Cabinet Integrated Cabling

Installation Accessories

Mounting Screws, Ground Wire, Cable Ties Included
