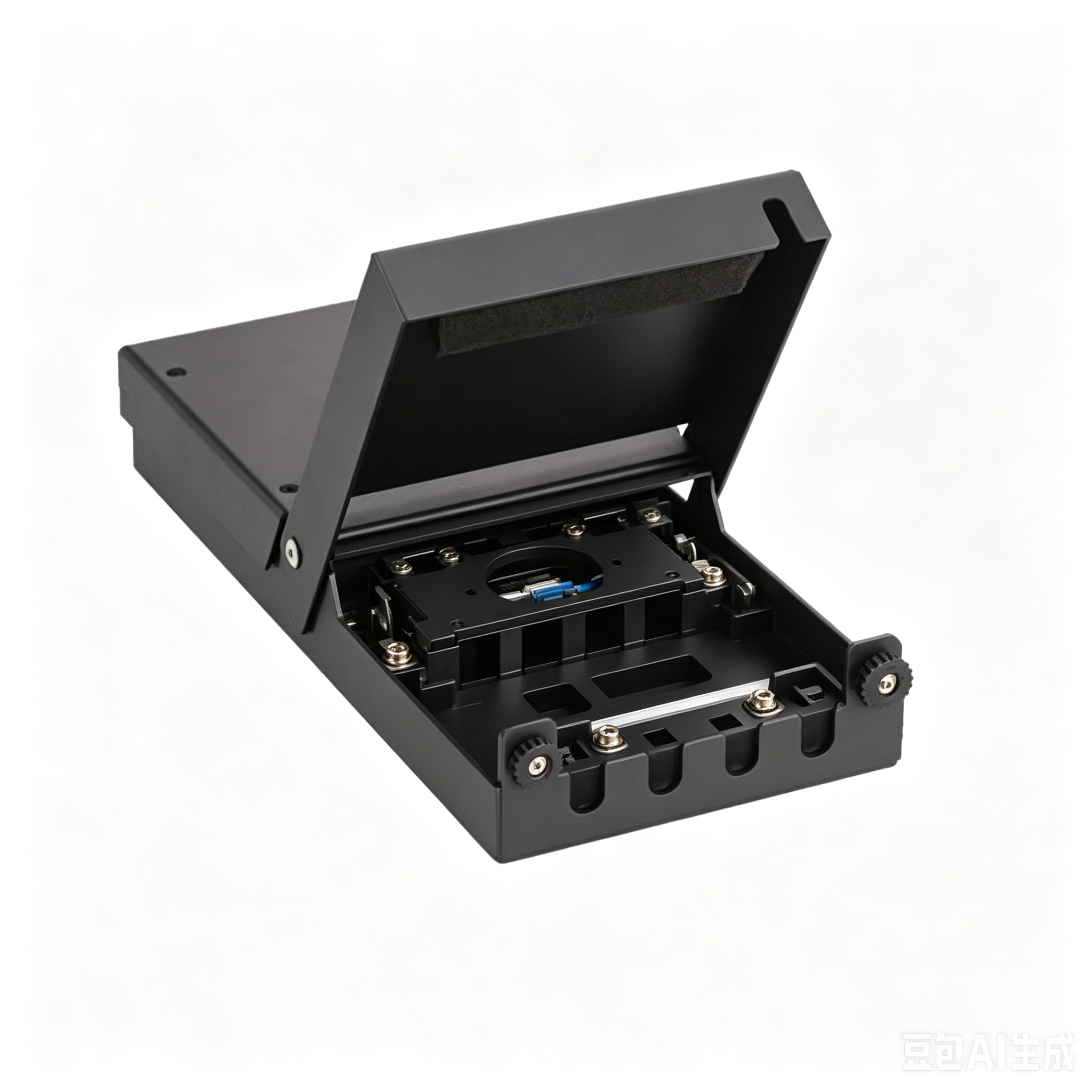

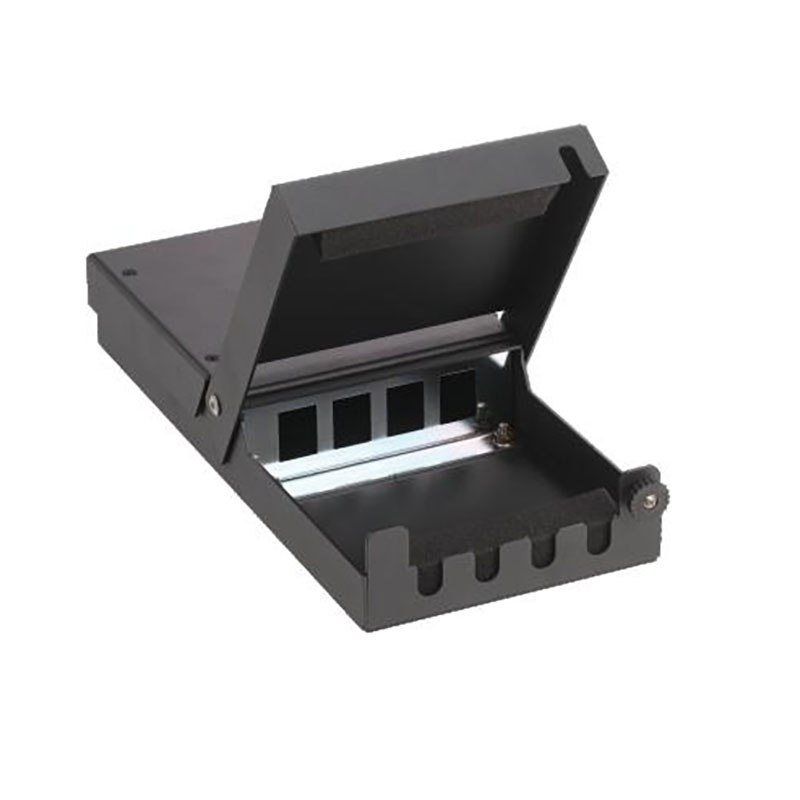

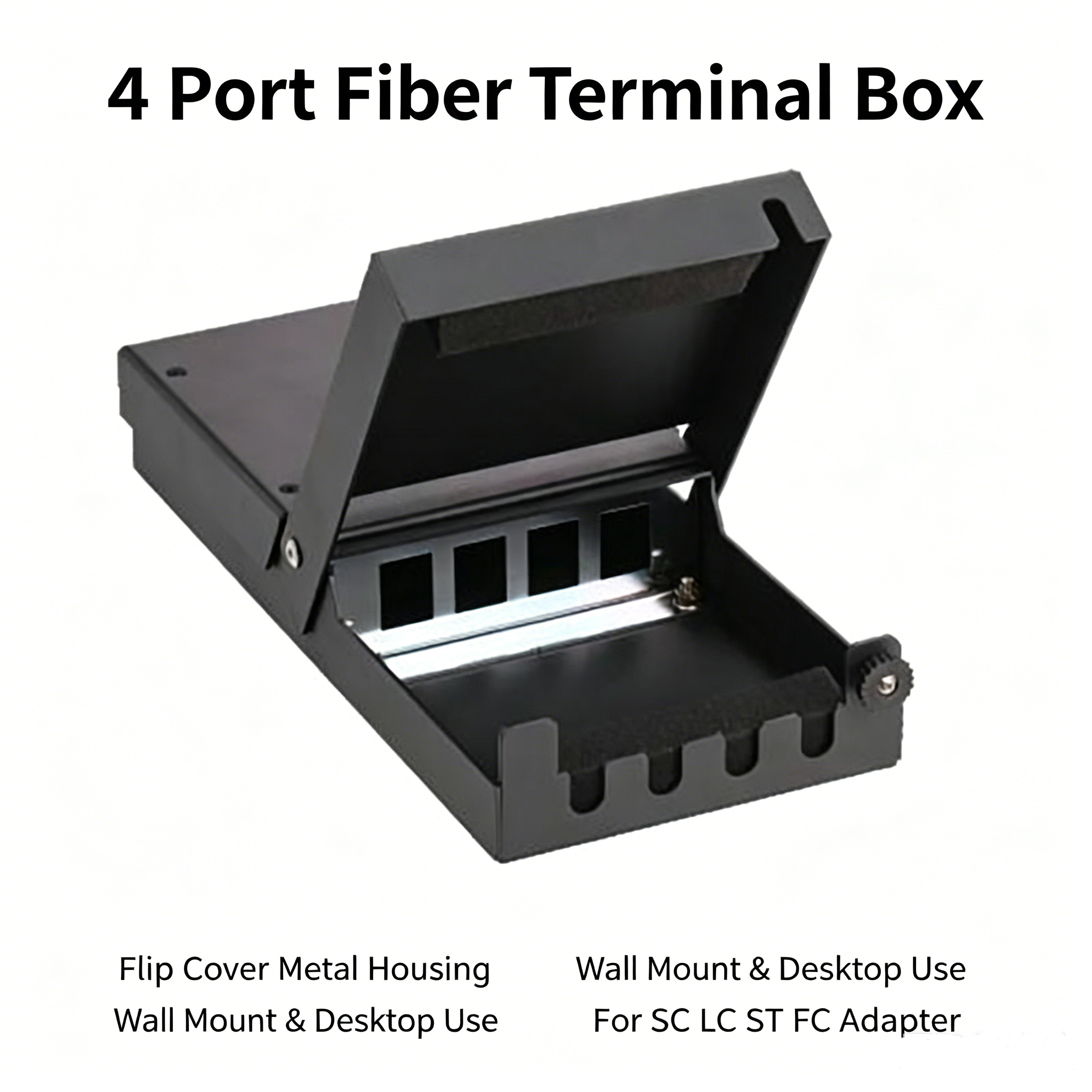

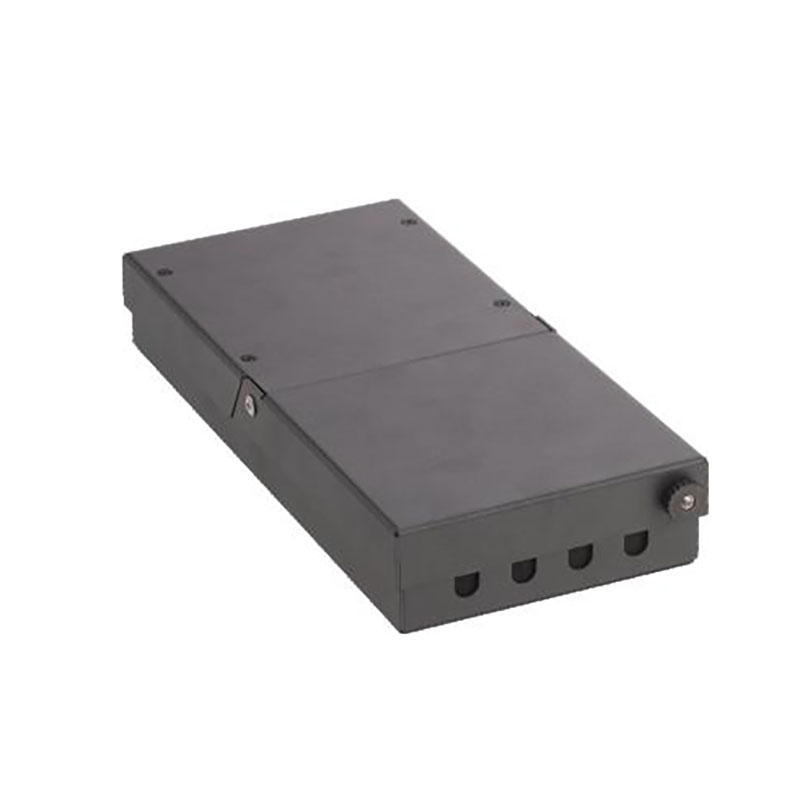

4 Port Mini Fiber Optic Terminal Box Wall Mount Fiber Patch Box

Our 4 port mini fiber optic terminal box is a cost-effective compact fiber splice box designed for indoor wall-mount installation. It serves as the termination point for fiber optic cables, protecting fragile fusion splices and realizing fiber signal distribution via fiber adapters. Widely applied in FTTH home broadband, small enterprise LAN, security monitoring system and telecommunication weak current projects.

Key Features

1. Durable Metal Shell: Cold rolled steel material, matte black electrostatic spraying, anti-                  corrosion and scratch resistant for long service life.

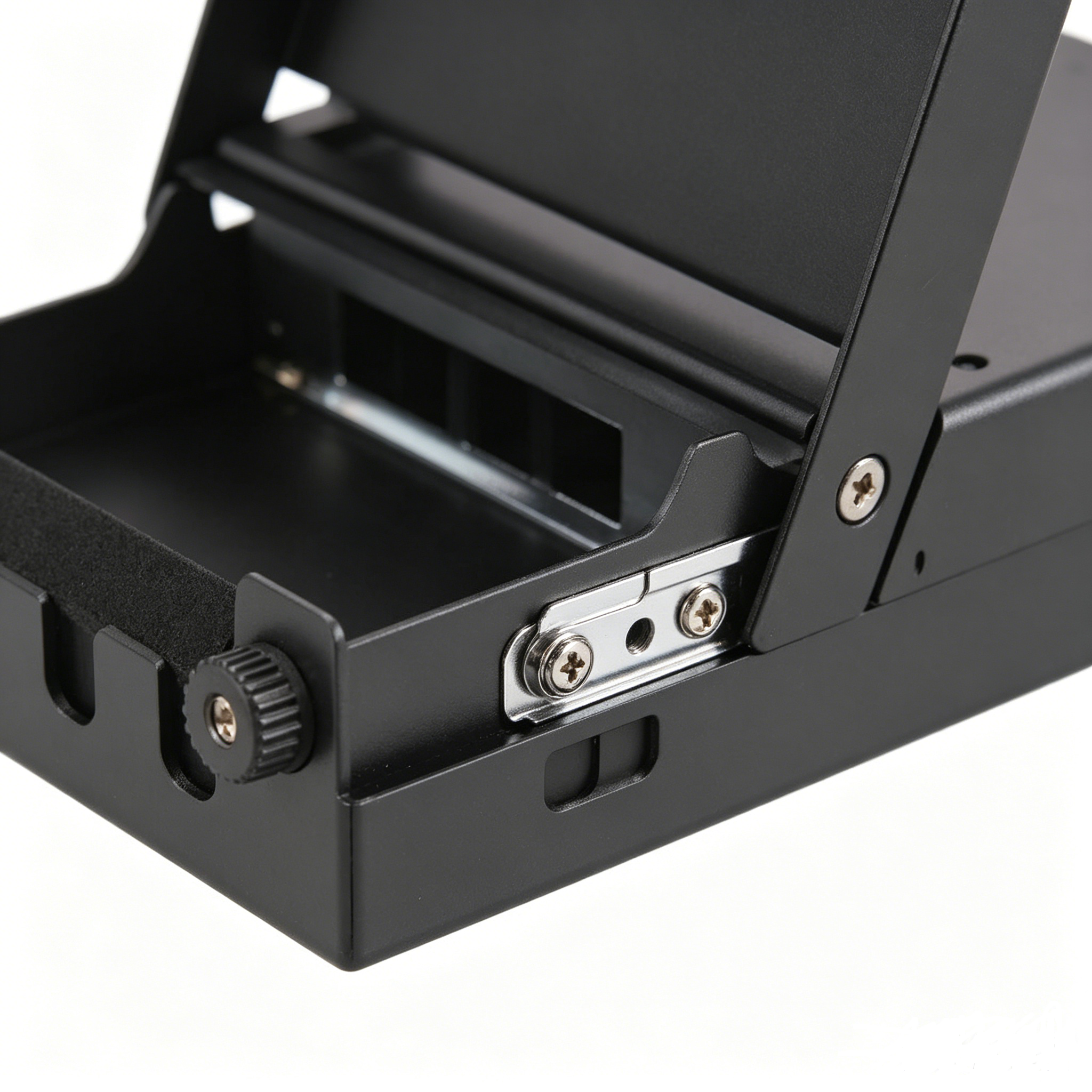

2. Flip Cover Lock Structure: Hinged flip cover with rotary locking knob, convenient opening and     dustproof protection.

3. 4 Cable Entry Ports: Reserved 4 wire outlets for incoming/outgoing fiber cables, neat wiring           layout.

4. Internal Splice Tray & Adapter Slots: Built-in metal splice bracket and adapter card slots,             supports SC, LC, FC, ST fiber flanges.

5. Independent Fiber Coiling Area: Special storage space to wind redundant fiber cords, avoid         fiber bending damage.

6. Wall Mount Design: Pre-reserved mounting holes on the back, easy to fix on wall, cabinet or         desktop.

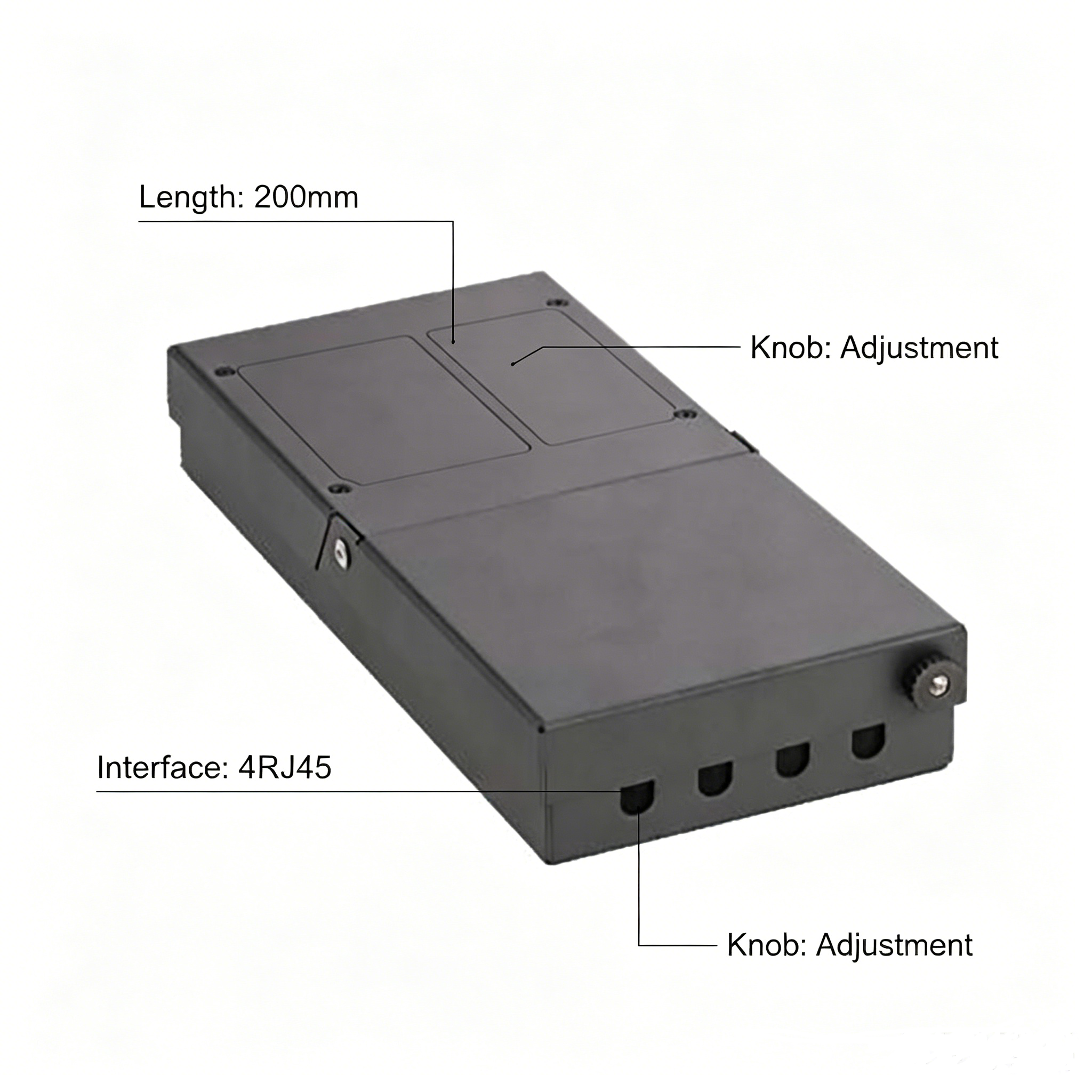

Technical Specifications

• Port Capacity: 4 ports maximum

• Housing Material: 1.0mm cold rolled steel

• Surface Treatment: Black epoxy powder coating

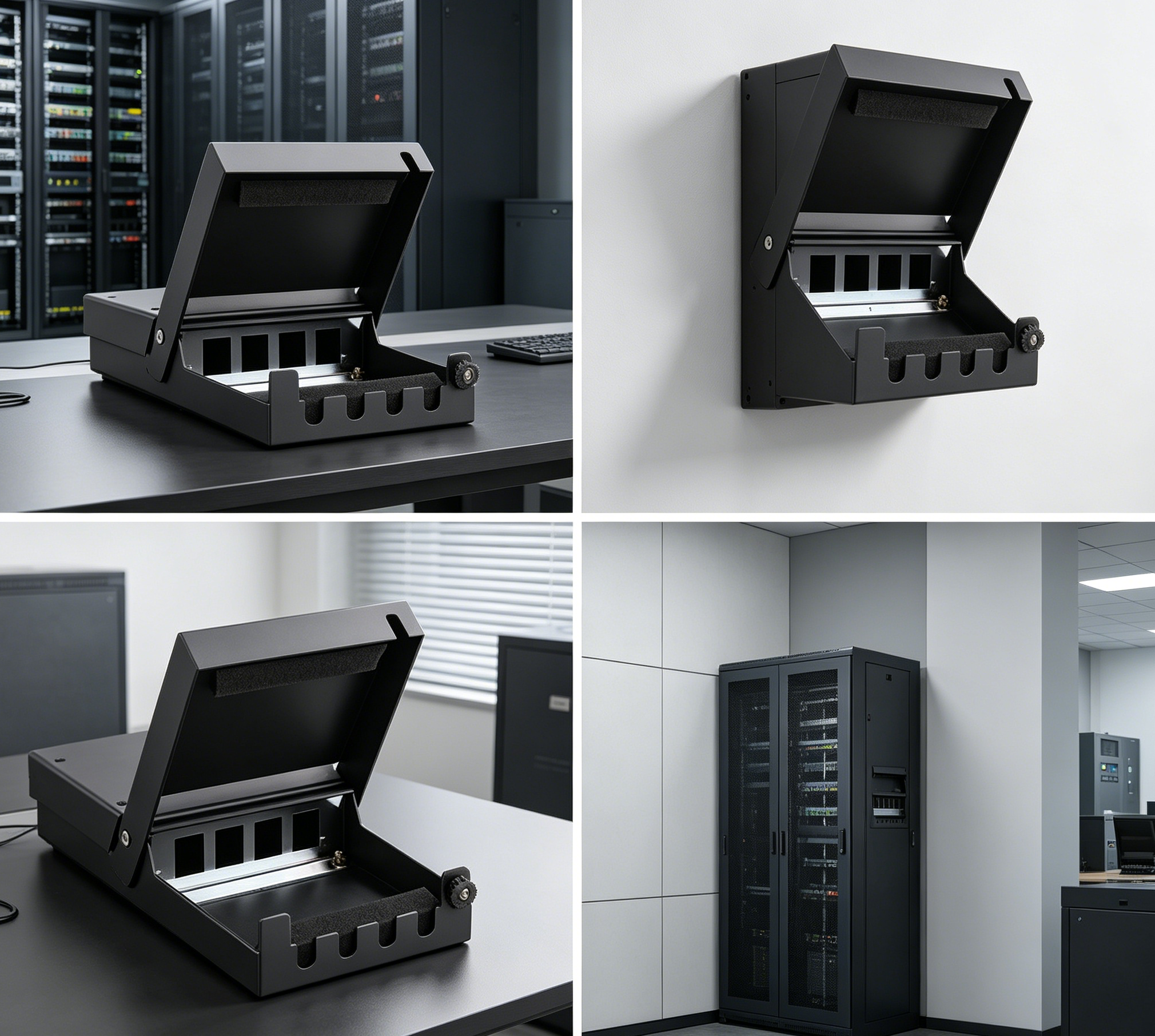

• Installation Type: Wall mounted / desktop placed

• Compatible Adapters: SC / LC / FC / ST

• Application: FTTH, CATV, surveillance, data communication

Application Scenarios

FTTH fiber-to-the-home terminal points

Small office & workshop network wiring

IP camera monitoring fiber connection

Telecom weak current room small distribution

School, supermarket, commercial building fiber access
